14W LED Dual Port Fiber Optic Illuminator With Dimming Feature

14W LED Dual Port Fiber Optic Illuminator With Dimming Feature


SKU: MK-WDM-502 Category:

Product Description

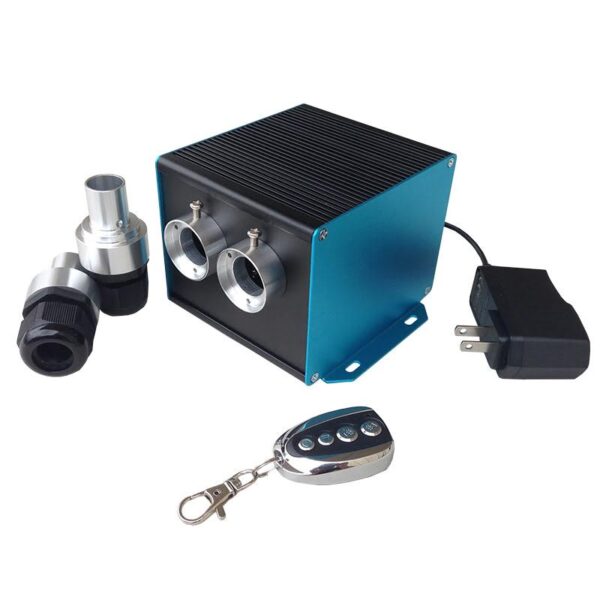

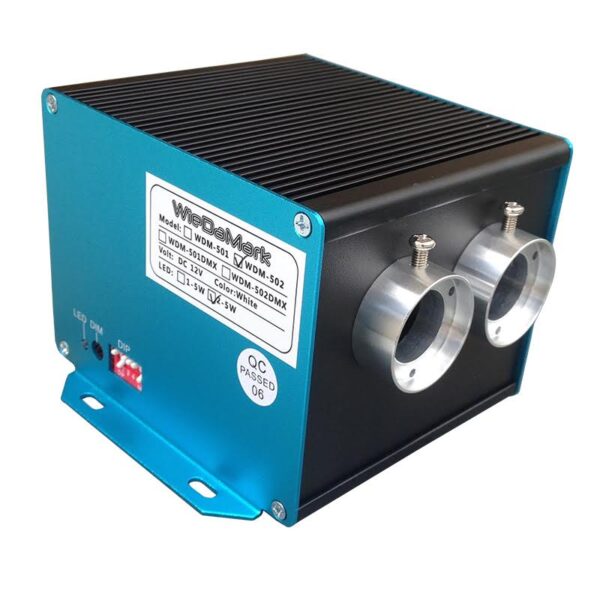

14 Watt LED Illuminator

Exclusive new Wiedamark LED 14W Fiber Optic Light Engine.  Designed for star ceiling type applications, this is a perfect solution to light your project. The illuminator has an installed twinkle wheel that creates an incredible shimmering effect. A key chain remote controller is also included with this kit. Because it uses LED technology, you won’t have to worry about changing out the bulb as LED’s have a very long life and are very energy efficient.

Main features:

  • 2pc 7W high power LED
  • Size: 4.92 in x 5 in x 3.15 in
  • Voltage: 12VDC Transformer Included.
  • Accepts 100/240VAC and European Adapters available as a related product.

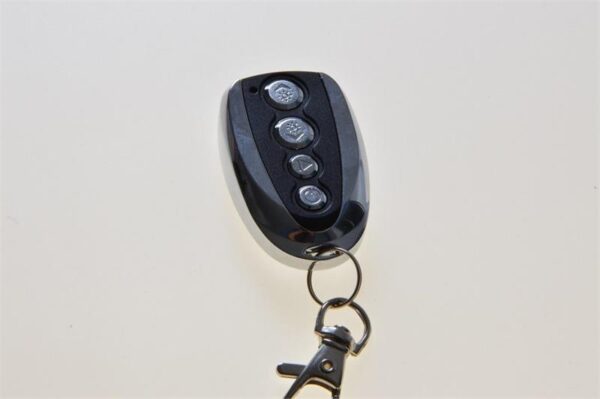

  • Includes Remote with on/off button and 8 levels of dimming.
  • Retains memory of dim level when powered off and back on with the remote.
  • Capacity of 800 strands of 0.75mm end lit fiber optic cable
  • Aluminum case with a special design to well release heat
  • Constant current adapter to last the life of the LED, reaching 50,000 hours.
  • Standard white twinkle wheel included

Download User Manual

Download maximum fiber capacity for this light engine by type.

Battery for the Remote: The battery for the remote is a 12 Volt (MN27, A27, or 27). The battery actual dimensions are 1″ x .30″ or 28mm x 7.75mm. Note: Be extremely careful when removing the three (3) tiny screws out of the remote. The screws are holding the entire remote casing together.

Weight 4 lbs
