Product Description

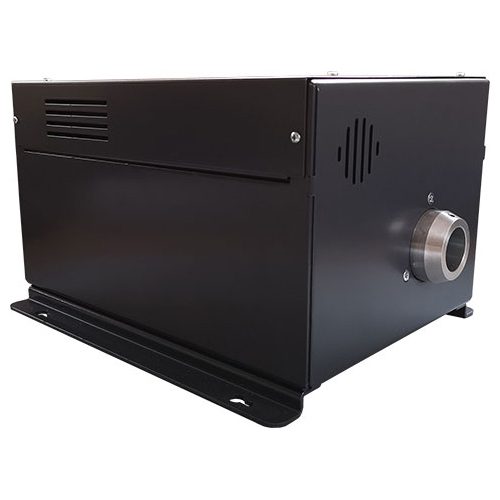

Extremely high powered light output and full DMX, 0-10V, 1-10V, manual control and DALI (via an optional interface) make this an LED illuminator unparalleled in its light output and control capabilities. Utilises industry standard protocols to control the units color change, twinkle and dimming effects. The Quasars LED is dimmable and you can also specify either a 10 segment color change, a twinkle, or a dual effect wheel to allow for decorative effects. This is the ultimate illuminator for lighting decorative fiber optic effect lighting. Features an LCD display which provides user feedback for ease of use. Fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.
Technical Specifications

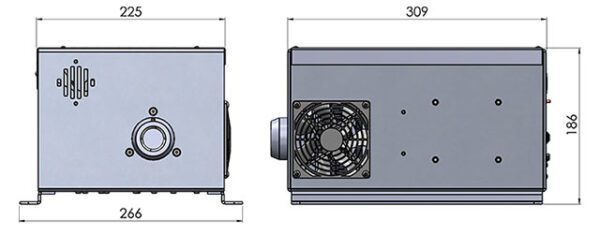

- Dimension: (L)309mm (12.16″) x (W)266mm (10.47″) x (H)186mm (7.32″)
- Lamp type: White LED Supply voltage: 100-240V AC, 47-63 Hz.
- 100-240 VAC, 50-60Hz;
- Color temp / CRI / Lumen output: 3000K – 80CRI – 17974lm / 4000K – 80CRI – 18438lm / 5000K – 80CRI – 18653lm / 5700K – 80CRI – 18840lm / 6500K – 80CRI – 18992lm 2700K – 90CRI – 14805lm / 3000K – 90CRI – 15400lm / 4000K – 90CRI – 15633lm / 5700K – 90CRI – 16174lm
- Dimming: Manual pot / DMX / 0-10V
- Effect options: 10 color wheel or twinkle wheel, controlled either manually, or by 0-10V or DMX
- Min. ambient temperature: -10°C
- Max. ambient temperature: 45°C
- Lamp life: 50,000 hours Enclosure:
- Sheet steel, powder coated dark grey
Download Data Sheet
Download User Guide
Additional Information
Weight | 16 lbs |
---|---|
Kelvin Temperature | |
Wheel |
