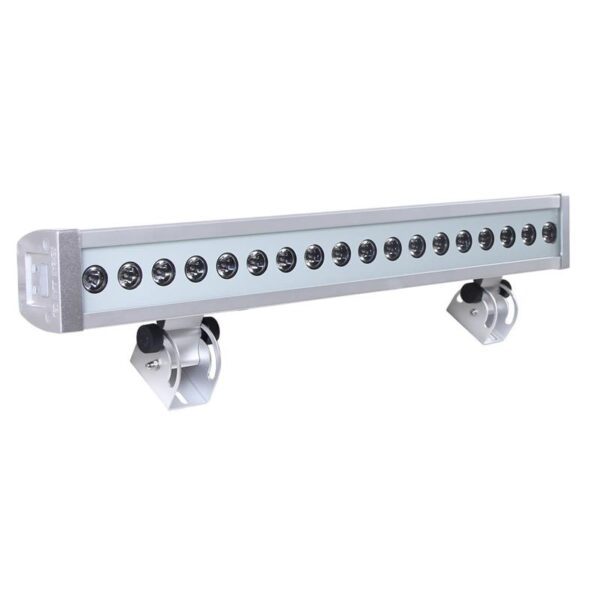

23″ ColorWash LED Wall Washer ETL Rated

23″ ColorWash LED Wall Washer ETL Rated


SKU: TK-LWW-5-18P-L500 Category:

Product Description

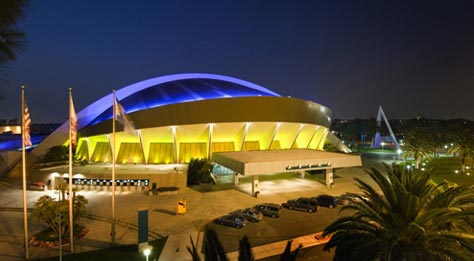

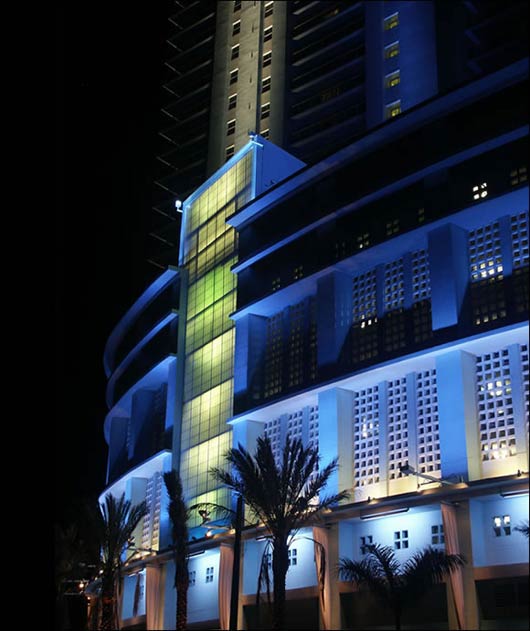

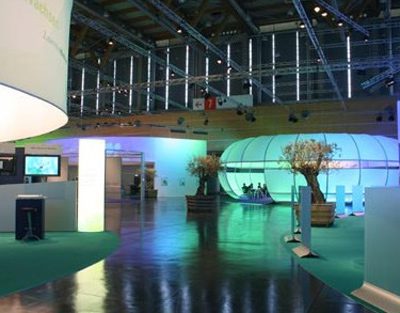

This indoor or outdoor, full-color capable LED fixture is frequently used for decorative illumination of architecture and wall graze/wall wash applications. Integrated DMX controls and settings can be accessed from the end-mounted 4-button control panel with display. The unit can also be operated completely independently without any need for external controllers or additional wiring by activating any of the on board pre-programmed effects.

  • High brightness using 18 (6 Red, 6 Green, 6 Blue)CREE LEDS
  • LED Beam Angle: 15, 30 or 45 Degrees
  • Easy to install with 150 degree rotating brackets
  • RGB color changing modes by DMX 512 controller
  • Self-control with pre-programmed lighting effects
  • Wave length: Red 620-625, Blue 470-475, Green 520-525
  • Extruded aluminum body with low heat generation
  • IP65 rated, applicable for outdoor applications
  • 50,000 Hour Lifespan
  • Operating temperature: -20 to +40C

Download spec sheet & user manual.

Download lumens spec sheet for 15 Degree beam angle.  Download lumens spec sheet on 30 Degree Beam Angle.   Download lumens spec sheet on 45 Degree Beam Angle.

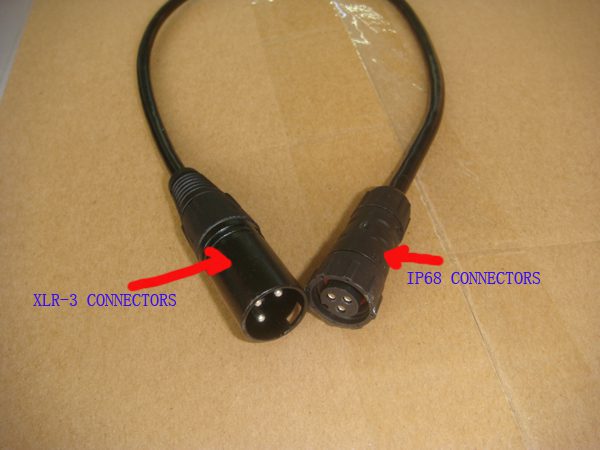

Each fixture ships with a female 3 Pin XLR adapter cable.

Additional Information

Weight 6 lbs
Beam Angle

, ,
