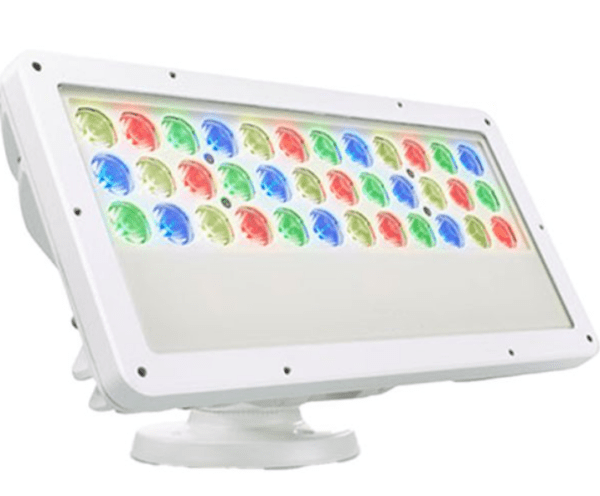

The Color Kinetics Blast Powercore IntelliHue gen5 (Model # 423-000026-00) is a high-performance RGBM (Red, Green, Blue, Mint White) LED floodlight that offers exceptional versatility in lighting applications, ranging from white and pastel tones to vibrant saturated colors. Powered by IntelliHue technology, this luminaire allows users to choose a precise color temperature (CCT) between 2000K and 10000K, making it perfect for a variety of environments, from dynamic architectural installations to entertainment and stage lighting. The luminaire’s 10° beam angle ensures a focused output of light, making it ideal for spotlighting and floodlighting applications.
Color Kinetics’ patented Powercore technology is integrated into this fixture, enabling it to convert power from line voltage directly into efficient light output. This eliminates the need for external power supplies, streamlining installation and reducing overall system costs. The Data Enabler Pro merges control data and power into a single cable, further simplifying setup and providing efficient control over the luminaire’s performance. This model also features Chromasync technology, ensuring consistent color output across multiple luminaires in a family, thus eliminating the need for manual color adjustments.
The design of the Blast Powercore IntelliHue gen5 is robust and engineered for long-lasting performance in harsh outdoor conditions. It features a die-cast aluminum housing with a white powder-coated finish that resists corrosion, impacts, and vibrations, meeting ASTM B117 standards for corrosion resistance and ANSI C136.31 for vibration ratings. The clear tempered glass lens protects the LEDs and ensures optimal light distribution, while the luminaire’s flat lens design prevents water from pooling, further enhancing durability.
Equipped with a powerful LED system, this fixture provides a total of 3,007 lumens when all channels are full on, with specific lumens per channel as follows: 595 for Red, 945 for Green, 219 for Blue, and 1,178 for Mint White. At 2700K, it emits 2,136 lumens, and at 4000K, the output increases to 2,422 lumens. The luminaire offers high efficacy, with 64 lm/W at full output, 79.7 lm/W at 2700K, and 69.2 lm/W at 4000K. The fixture’s CRI (Color Rendering Index) is 82.5 at 2700K and 76.6 at 4000K, ensuring excellent color reproduction.
Additionally, the Color Kinetics IntelliHue model offers customizable beam angles with five available spread lenses to modify the beam from the native 10° to 20°, 40°, 60°, 80°, or 10° x 40° (asymmetric), enabling greater design flexibility. Accessories such as louver, rock guard, full glare shield, and half glare shield are also available, offering further customization options for specific lighting needs.
Features
- RGBM LED technology with adjustable CCT range from 2000K to 10000K for versatile lighting options
- 10° beam angle for focused, high-intensity light ideal for spotlighting and floodlighting applications
- Powercore technology for efficient power conversion directly from line voltage, reducing installation complexity
- Chromasync technology ensures consistent color output across all luminaires in a series
- Clear tempered glass lens for optimal light distribution and protection of LEDs
- Die-cast aluminum housing with white powder-coated finish for enhanced durability and corrosion resistance
- Meets ASTM B117 for corrosion resistance and ANSI C136.31 for 3G vibration resistance
- Precise color mixing and enhanced light quality with advanced optics
- Available with multiple beam angle options: 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric)
- High efficacy: 64 lm/W (full output), 79.7 lm/W (2700K), and 69.2 lm/W (4000K)
- CRI values of 82.5 at 2700K and 76.6 at 4000K for excellent color rendering
- Remote monitoring and management capabilities with Interact Landmark
- Flexible dimming capabilities down to 1% with the optional Data Enabler Pro and digital control interface
- Meets UL/cUL, FCC Class A, CE, PSE, CQC, RCM, and EAC certifications
- IP66-rated for dry, damp, and wet locations
- Universal input voltage range of 100 to 277 VAC
Specifications
Output
- Beam Angle: 10°
- Lumens All Channels Full On: 3,007
- Lumens @ 2700K: 2,136
- Lumens @ 4000K: 2,422
- Lumens per channel: R 595 / G 945 / B 219 / MW 1,178
- Efficacy (lm/W) All Channels Full On: 64
- Efficacy (lm/W) @ 2700K: 79.7
- Efficacy (lm/W) @ 4000K: 69.2
- CRI @ 2700K: 82.5
- CRI @ 4000K: 76.6
- LED Channels: Red/Green/Blue/Mint White
Electrical
- Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
- Power Consumption (Maximum at full output, steady state): 50W
- Power Factor: 0.99 @ 120 VAC, 0.88 @ 277 VAC
- Surge Limits: 2KV maximum differential (L to N), 4KV maximum common (L to Gnd or N to Gnd)
Control
- Interface: Data Enabler Pro (DMX or Ethernet)
- Control Channels: 4 channels per luminaire
- Control System: ColorKinetics full range of controllers, including iPlayer 3, iPlayer 4, Antumbra iColorKeypad, and ColorDial Pro, or third-party controllers
- Remote Monitoring & Management: Works with Interact Landmark
Physical
- Dimensions: 7.2 x 13.2 x 6.74 inches
- Weight: 8.2 lbs
- Effective Projected Area (EPA): 0.73 ft2 (Luminaire plus Full Glare Shield)
- Housing Material: Die-cast aluminium, white powder-coated finish
- Lens: Clear tempered glass
- Luminaire Connections: 1.8 m (6 ft) unified power/data cable
- Temperature Ranges: -40F to 122F Operating, -4F to 122F Startup, -40F to 176F Storage
- Vibration Resistance: Complies with ANSI C136.31, 3G
- Mechanical Impact: IK10
- Corrosion Resistance: Complies with ASTM B117 standard for > 1,500 hours
- Humidity: 0 to 95%, non-condensing
- Thermal Protection enabled
- Luminaire Run Lengths: To calculate luminaire run lengths and total power consumption for your specific installation, download the Configuration Calculator
Certification and Safety
- Approbation: UL/cUL, FCC Class A, CE, PSE, CQC, RCM
- Environment: Dry/Damp/Wet Location, IP66
SPEC SHEET:
100 – 277 VAC, 10° Native (no spread lens), White Housing, UL/CE/CQC
