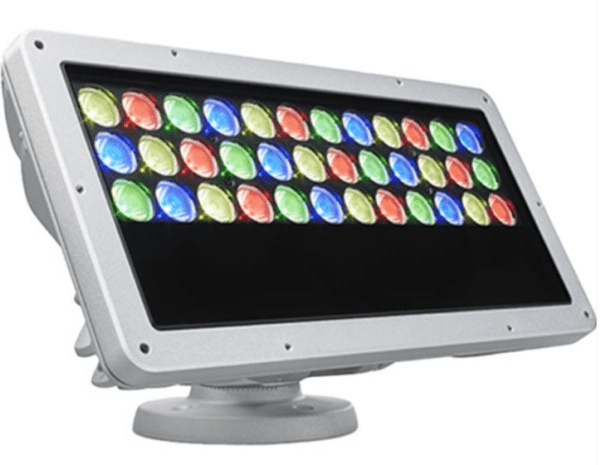

The Color Kinetics eW Blast Powercore IntelliHue gen5 (Model # 423-000026-04) is an advanced RGBM (Red, Green, Blue, Mint White) LED floodlight designed to provide high-quality, uniform white, pastel, and saturated color light in a precisely controllable and efficient luminaire. This luminaire features IntelliHue technology, which delivers an exceptional Color Rendering Index (CRI) and provides the flexibility to adjust the correlated color temperature (CCT) from 2000K to 10000K, making it suitable for a wide range of architectural and entertainment applications. With its 10° beam angle, this model is ideal for applications requiring focused, high-intensity illumination.
Equipped with Color Kinetics’ patented Powercore technology, this floodlight is capable of rapidly and efficiently controlling the power output directly from line voltage. This eliminates the need for external power supplies, simplifying the installation process and reducing total system costs. The Data Enabler Pro integrates power and control data into a single cable, allowing for a more streamlined and cost-effective installation.
The eW Blast Powercore IntelliHue gen5 also utilizes Chromasync technology, which ensures consistent color output across all luminaires within the same family. This eliminates the need for manual adjustment of each individual luminaire, resulting in consistent and uniform color across large installations. The advanced optical system improves the light quality of each LED, providing better color uniformity and enhanced color mixing for optimal visual performance. In addition, the luminaire’s flat lens design helps prevent water pooling, protecting the LEDs and ensuring long-lasting durability in outdoor environments.
Designed for harsh outdoor conditions, the die-cast aluminum housing with a gray powder-coated finish is highly resistant to corrosion, impact, and vibration. The luminaire complies with ANSI C136.31 standards with a 3G vibration rating and meets ASTM B117 standards for over 1,500 hours of corrosion resistance, making it ideal for use in demanding environments. The clear tempered glass lens allows for optimal light distribution, ensuring precise beam control and uniform illumination across large surfaces. This fixture is also equipped with thermal protection, ensuring safe and reliable performance across a wide temperature range.
Output specifications include a total of 3,007 lumens at full output, with specific lumens per channel: 595 for Red, 945 for Green, 219 for Blue, and 1,178 for Mint White. The efficacy of this model ranges from 64 lm/W at full output to 79.7 lm/W at 2700K and 69.2 lm/W at 4000K. The fixture delivers CRI values of 82.5 at 2700K and 76.6 at 4000K, providing high-quality color rendering for various lighting needs.
Features
- RGBM LED technology with a CCT range of 2000K to 10000K for versatile color temperature control
- 10° beam angle for focused, high-intensity illumination, ideal for floodlighting and spotlighting
- Powercore technology enables direct power conversion from line voltage for simplified installation
- Chromasync technology ensures consistent color output across all luminaires in a family
- Advanced optical system improves color uniformity and light mixing
- Durable die-cast aluminum housing with a gray powder-coated finish resists corrosion and impact
- Clear tempered glass lens for optimal light distribution and protection of LEDs
- Compliance with ANSI C136.31 (3G vibration rating) and ASTM B117 (1,500+ hours of corrosion resistance)
- Digital dimming capabilities down to 1% with optional Data Enabler Pro and digital control interface
- Effective lumens: 3,007 (all channels full on), 2,136 at 2700K, and 2,422 at 4000K
- High efficacy: 64 lm/W at full output, 79.7 lm/W at 2700K, and 69.2 lm/W at 4000K
- CRI of 82.5 at 2700K and 76.6 at 4000K for accurate color rendering
- Flexible beam customization with additional lenses for 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric) beam angles
- Compatible with a full range of Color Kinetics controllers and third-party control systems
- IP66-rated for dry, damp, and wet locations
- Universal input voltage range of 100 to 277 VAC
Specifications
Output
- Beam Angle: 10°
- Lumens All Channels Full On: 3,007
- Lumens @ 2700K: 2,136
- Lumens @ 4000K: 2,422
- Lumens per channel: R 595 / G 945 / B 219 / MW 1,178
- Efficacy (lm/W) All Channels Full On: 64
- Efficacy (lm/W) @ 2700K: 79.7
- Efficacy (lm/W) @ 4000K: 69.2
- CRI @ 2700K: 82.5
- CRI @ 4000K: 76.6
- LED Channels: Red/Green/Blue/Mint White
Electrical
- Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
- Power Consumption (Maximum at full output, steady state): 50W
- Power Factor: 0.99 @ 120 VAC, 0.88 @ 277 VAC
- Surge Limits: 2KV maximum differential (L to N), 4KV maximum common (L to Gnd or N to Gnd)
Control
- Interface: Data Enabler Pro (DMX or Ethernet)
- Control Channels: 4 channels per luminaire
- Control System: ColorKinetics full range of controllers, including iPlayer 3, iPlayer 4, Antumbra iColorKeypad, and ColorDial Pro, or third-party controllers
- Remote Monitoring & Management: Works with Interact Landmark
Physical
- Dimensions: 7.2 x 13.2 x 6.74 inches
- Weight: 8.2 lbs
- Effective Projected Area (EPA): 0.73 ft2 (Luminaire plus Full Glare Shield)
- Housing Material: Die-cast aluminium, gray powder-coated finish
- Lens: Clear tempered glass
- Luminaire Connections: 1.8 m (6 ft) unified power/data cable
- Temperature Ranges: -40F to 122F Operating, -4F to 122F Startup, -40F to 176F Storage
- Vibration Resistance: Complies with ANSI C136.31, 3G
- Mechanical Impact: IK10
- Corrosion Resistance: Complies with ASTM B117 standard for > 1,500 hours
- Humidity: 0 to 95%, non-condensing
- Thermal Protection enabled
- Luminaire Run Lengths: To calculate luminaire run lengths and total power consumption for your specific installation, download the Configuration Calculator
Certification and Safety
- Approbation: UL/cUL, FCC Class A, CE, PSE, CQC, RCM
- Environment: Dry/Damp/Wet Location, IP66
SPEC SHEET:
100 – 277 VAC, 10° Native (no spread lens), Gray Housing, UL/CE/CQC
