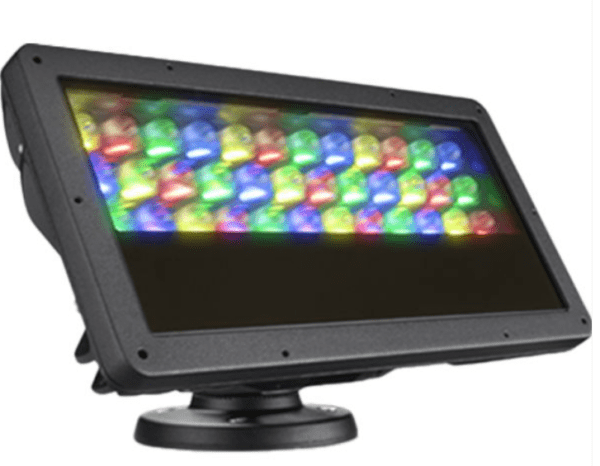

The Color Kinetics Blast Powercore IntelliHue OptiField gen5 (Model # 423-000037-01) is a high-performance, RGBM (Red, Green, Blue, Mint White) LED floodlight that brings both versatility and precision to lighting applications. Leveraging IntelliHue technology, this luminaire provides high-quality white light, pastel hues, and saturated colors, with the ability to select a color temperature (CCT) anywhere from 2000K to 10000K, offering exceptional flexibility for dynamic and aesthetic lighting effects. The 10° beam angle, combined with its wall-washing capabilities, makes it ideal for floodlighting, spotlighting, and general illumination needs across architectural and entertainment spaces.
At the heart of the IntelliHue OptiField gen5 is Color Kinetics’ patented Powercore technology, which efficiently converts line voltage directly into a stable output for the luminaire. This technology reduces installation complexity by merging power and data into a single cable, streamlining setup and cutting down on system costs. The integration of Chromasync technology ensures consistent color quality and uniformity across all luminaires in a family, eliminating the need for manual color point adjustments, which is ideal for large installations requiring precise color matching.
The OptiField technology embedded in this model guarantees uniform illumination across large surfaces. With its breakthrough optics, the luminaire provides smooth, even lighting, perfect for creating seamless light washes without noticeable hotspots or banding, even when placed close to the illuminated surface. This functionality is especially beneficial in applications like wall washing, where consistent, uniform lighting is paramount.
This luminaire is designed for durability and long-term reliability, even in harsh outdoor environments. It features a rugged die-cast aluminum housing with a black powder-coated finish that resists corrosion and impact. The clear tempered glass lens is designed to protect the LEDs and ensures maximum light output while preventing water pooling, thus increasing the fixture’s lifespan. The luminaire complies with ASTM B117 standards for corrosion resistance and ANSI C136.31 for vibration resistance, with a 3G vibration rating, ensuring it can withstand demanding environmental conditions.
The Blast Powercore IntelliHue OptiField gen5 provides a luminous output of 2,170 lumens when all channels are fully engaged, with channel-specific outputs of 595 lumens for red, 945 lumens for green, 219 lumens for blue, and 1,178 lumens for mint white. The fixture’s efficacy is 45.3 lm/W at full output, while the efficacy at 2700K is 53.7 lm/W and at 4000K is 51.2 lm/W. Its color rendering capabilities are exceptional, with CRI values of 93.5 at 2700K and 92.1 at 4000K, making it suitable for high-quality lighting that enhances the appearance of objects and surfaces.
Customization is a key feature of the Blast Powercore IntelliHue OptiField gen5. In addition to the native 10° lens, five optional lenses allow the user to modify the beam angle to suit specific needs: 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric). The luminaire also offers a wide selection of accessories, including full and half glare shields, rock guards, and louvers, all available in black, gray, or white finishes, providing even greater flexibility for designers and architects.
Designed to be compatible with the full range of Color Kinetics controllers, including Light System Manager, Video System Manager, iPlayer 3, and third-party controllers, this fixture also supports remote monitoring and management through Interact Landmark for easy installation and ongoing system performance oversight.
Features
- RGBM LED technology with adjustable CCT range from 2000K to 10000K for versatile white and color lighting
- 10° beam angle ideal for floodlighting and spotlighting applications
- IntelliHue and OptiField technologies provide high-quality, uniform illumination with smooth wall washes and no hotspots or banding
- Powercore technology efficiently converts line voltage to light, reducing system costs and simplifying installation
- Chromasync technology ensures color consistency across multiple luminaires without manual adjustments
- Delivers high luminous output with 2,170 lumens (all channels full on) and exceptional CRI values (93.5 at 2700K, 92.1 at 4000K)
- Durable die-cast aluminum housing with black powder-coated finish for outdoor applications
- Clear tempered glass lens protects LEDs and enhances light distribution
- Customizable beam angles with optional lenses: 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric)
- Includes a full range of accessories (glare shields, louvers, rock guard) in various finishes (black, gray, white)
- Compatible with Color Kinetics controllers and third-party control systems
- Remote monitoring and management with Interact Landmark for efficient system operation
- Complies with ASTM B117 and ANSI C136.31 standards for corrosion resistance and vibration resistance
- IP66-rated for dry, damp, and wet locations
Specifications
Output
- Beam: Wall Washing
- Lumens All Channels Full On: 2,170
- Lumens @ 2700K: 1,157
- Lumens @ 4000K: 1,263
- Lumens per channel: R345 / G800 / B221 / MW 954
- Efficacy (lm/W) All Channels Full On: 45.3
- Efficacy (lm/W) @ 2700K: 53.7
- Efficacy (lm/W) @ 4000K: 51.2
- CRI @ 2700K: 93.5
- CRI @ 4000K: 92.1
- LED Channels: Red/Green/Blue/Mint White
Electrical
- Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
- Power Consumption (Maximum at full output, steady state): 21.6 W to 47.9 W
- Power Factor: 0.99 @ 120 VAC
- Surge Limits: 1KV maximum differential (L to N), 2KV maximum common (L to Gnd or N to Gnd)
Control
- Interface: Data Enabler Pro (DMX or Ethernet)
- Control Channels: 4 channels per luminaire
- Control System: ColorKinetics full range of controllers, including iPlayer 3, iPlayer 4, Antumbra iColorKeypad, and ColorDial Pro, or third-party controllers
- Remote Monitoring & Management: Works with Interact Landmark
Physical
- Dimensions: 7.2 x 13.2 x 6.74 inches
- Weight: 8.2 lbs
- Effective Projected Area (EPA): 0.73 ft2 (Luminaire plus Full Glare Shield)
- Housing Material: Die-cast aluminium, black powder-coated finish
- Lens: Clear tempered glass
- Luminaire Connections: 1.8 m (6 ft) unified power/data cable
- Temperature Ranges: 40F to 122F Operating, -4F to 122F Startup, -40F to 176F Storage
- Vibration Resistance: Complies with ANSI C136.31, 3G
- Mechanical Impact: IK10
- Corrosion Resistance: Complies with ASTM B117 standard for > 1,500 hours
- Humidity: 0 to 95%, non-condensing
- Thermal Protection enabled
- Luminaire Run Lengths: To calculate luminaire run lengths and total power consumption for your specific installation, download the Configuration Calculator
Certification and Safety
- Approbation: UL/cUL, FCC Class A, CE, PSE, CQC, RCM, EAC, UA
- Environment: Dry/Damp/Wet Location, IP66
