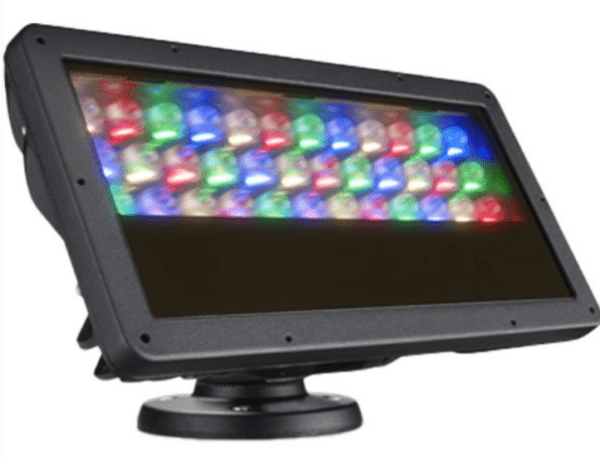

The Color Kinetics Blast Powercore OptiField gen5 (Model # 423-000038-01) is a high-performance RGBW LED floodlight designed for demanding white and color lighting applications. It combines powerful output with precise color control and exceptional reliability, making it ideal for both architectural and entertainment lighting. With a 4000K color temperature and OptiField technology, this luminaire delivers extremely uniform illumination with smooth, even light and subtle shading, eliminating hotspots and banding for a flawless wall of light.
Blast Powercore OptiField gen5 is designed to provide better-quality whites compared to traditional RGB-only systems, thanks to the addition of a dedicated white LED. This feature enhances the overall light quality, providing rich white light along with vibrant color effects. The fixture integrates Color Kinetics’ patented Powercore technology, which enables efficient and accurate control of power directly from line voltage. This eliminates the need for external power supplies, simplifying installation and reducing system costs.
The luminaire is built for durability, meeting stringent standards for corrosion resistance and vibration protection. It complies with the ASTM B117 standard for over 1,500 hours of corrosion resistance and the ANSI C136.31-2010 standard with a 3G vibration rating. Additionally, the design features a flat lens that prevents water from pooling, ensuring that the LEDs remain protected throughout the fixture’s lifetime. These robust features make it suitable for use in harsh environments, providing reliable performance in both dry and wet locations.
OptiField technology ensures a high level of performance by producing a smooth and uniform illumination. The fixture can be placed close to illuminated surfaces without compromising light quality, making it ideal for applications where precise control and even light distribution are crucial. With a beam angle optimized for wall washing, the Blast Powercore OptiField gen5 is perfect for creating seamless, visually striking lighting effects in architectural or landscape installations.
Customization options for the Blast Powercore OptiField gen5 include a full line of accessories designed to further enhance the functionality and aesthetics of the fixture. In addition to the standard 10° lens, users can choose from five other lens options to modify the beam angle: 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric). Accessories such as full and half glare shields and rock guards are also available, allowing users to adapt the fixture to their specific project needs. The luminaire is available in black, gray, or white finishes, providing aesthetic flexibility for various design requirements.
With its exceptional lumen output of 1,893 lumens and an efficacy of 398 lm/W, the Blast Powercore OptiField gen5 offers outstanding energy efficiency. It is capable of producing a wide range of color effects with its RGBW channels, providing rich, saturated colors along with high-quality whites. The luminaire’s CRI values are also impressive, with a CRI of 93.5 at 2700K and 92.1 at 4000K, ensuring accurate color rendering for both white light and color effects.
The fixture operates with an input voltage range of 100 to 277 VAC and offers seamless integration with the Color Kinetics line of controllers, including iPlayer 3, iPlayer 4, and Antumbra iColorKeypad, as well as third-party systems. It also supports DMX and Ethernet control interfaces via the Data Enabler Pro, allowing for easy integration into larger lighting networks. Remote monitoring and management are available through the Interact Landmark system, providing real-time control and monitoring for large-scale installations.
Features
- RGBW LED floodlight with Powercore technology for efficient power control
- OptiField technology provides uniform illumination with no hotspots or banding
- Delivers 1,893 lumens with an efficacy of 398 lm/W
- High CRI values of 93.5 at 2700K and 92.1 at 4000K for accurate color rendering
- Customizable beam angles with 10°, 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric) lenses
- Corrosion resistance compliant with ASTM B117 standard for > 1,500 hours
- Vibration resistance compliant with ANSI C136.31, 3G
- IP66-rated for use in dry, damp, and wet locations
- Temperature range: -40°F to 122°F operating, -4°F to 122°F startup, -40°F to 176°F storage
- Available in black, gray, or white finishes with optional glare shields and accessories
- Works with Color Kinetics and third-party controllers, and supports remote monitoring via Interact Landmark
Specifications
Output
- Beam: Wall Washing
- Lumens: 1,893
- Efficacy (lm/W): 398
- LED Channels: Red/Green/Blue/White
Electrical
- Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
- Power Consumption (Maximum at full output, steady state): 47.6 W
- Power Factor: 0.99 @ 120 VAC
- Surge Limits: 1KV maximum differential (L to N), 2KV maximum common (L to Gnd or N to Gnd)
Control
- Interface: Data Enabler Pro (DMX or Ethernet)
- Control Channels: 4 channels per luminaire
- Control System: ColorKinetics full range of controllers, including iPlayer 3, iPlayer 4, Antumbra iColorKeypad, and ColorDial Pro, or third-party controllers
- Remote Monitoring & Management: Works with Interact Landmark
Physical
- Dimensions: 7.2 x 13.2 x 6.74 inches
- Weight: 8.2 lbs
- Effective Projected Area (EPA): 0.73 ft2 (Luminaire plus Full Glare Shield)
- Housing Material: Die-cast aluminium, black powder-coated finish
- Lens: Clear tempered glass
- Luminaire Connections: 1.8 m (6 ft) unified power/data cable
- Temperature Ranges: -40°F to 122°F Operating, -4°F to 122°F Startup, -40°F to 176°F Storage
- Vibration Resistance: Complies with ANSI C136.31, 3G
- Mechanical Impact: IK10
- Corrosion Resistance: Complies with ASTM B117 standard for > 1,500 hours
- Humidity: 0 to 95%, non-condensing
- Thermal Protection enabled
- Luminaire Run Lengths: To calculate luminaire run lengths and total power consumption for your specific installation, download the Configuration Calculator
Certification and Safety
- Approbation: UL/cUL, FCC Class A, CE, PSE, CQC, RCM, EAC, UA
- Environment: Dry/Damp/Wet Location, IP66
SPEC SHEET:
