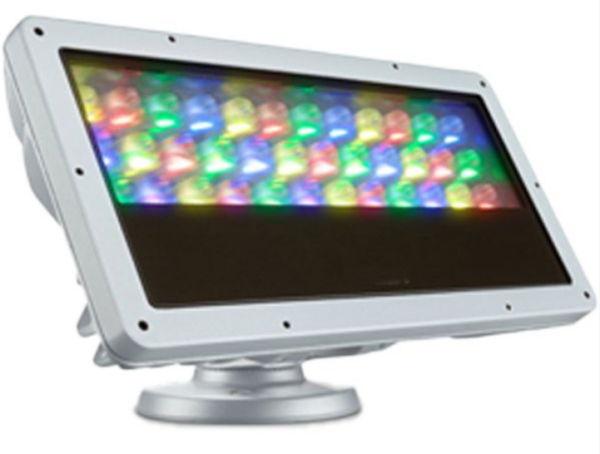

The Color Kinetics Blast Powercore OptiField gen5 (Model # 423-000038-02) is an advanced RGBW LED floodlight designed to meet the most demanding lighting applications, delivering both superior white and color light with exceptional efficacy and uniformity. This IP66-rated luminaire features OptiField technology, which provides smooth and even light distribution with minimal shading, eliminating hotspots and banding for a flawless, consistent wall of light. With a 4000K color temperature and a high CRI, the Blast Powercore OptiField is perfect for applications requiring precision, high-quality light, and versatile control.
The Blast Powercore gen5, RGBW OptiField enhances white light output by adding a dedicated white LED, which provides higher-quality whites compared to RGB-only systems. This innovation ensures that the luminaire delivers true, vibrant whites along with saturated color effects, making it ideal for applications that require both exceptional color and neutral white light. This fixture is particularly suited for floodlighting, spotlighting, wall washing, and grazing, providing extensive flexibility for a variety of installation needs.
Featuring patented Powercore technology, the Blast Powercore OptiField gen5 directly controls power output from line voltage, enabling efficient and accurate power management. This simplifies installation by eliminating the need for external power supplies and dramatically reducing system costs. The Color Kinetics Data Enabler Pro delivers line voltage and control data over a single cable, making installation seamless and cost-effective.
Blast Powercore OptiField gen5 integrates innovative optics that allow it to produce extremely uniform illumination, delivering smooth, even lighting across large surfaces. The fixture is designed to be placed exceptionally close to illuminated surfaces, ensuring no degradation in lighting quality while offering precise control. The technology behind OptiField ensures that the fixture performs with high output and greater energy efficiency compared to conventional systems, making it a reliable and effective choice for demanding projects.
Color consistency is key for large-scale installations, and with Color Kinetics’ Chromasync technology, this luminaire ensures consistent color performance across multiple units. During manufacturing, a calibrated light measurement device creates an algorithm to define a common color gamut, ensuring that all luminaires in the family match perfectly. This means that the color point adjustments are automated, eliminating the need for manual calibration during installation or future maintenance.
For added durability, the Blast Powercore OptiField gen5 is built to withstand tough conditions. It meets the ASTM B117 standard for over 1,500 hours of corrosion resistance and the ANSI C136.31-2010 standard with a 3G vibration rating, ensuring its reliability even in harsh environments. The flat lens design prevents water pooling, further protecting the LEDs and extending the life of the luminaire.
The fixture operates with a power input range of 100 to 277 VAC, making it suitable for global installations. It is compatible with Color Kinetics’ complete range of controllers, including Light System Manager, Video System Manager Pro, iPlayer 3, and Antumbra iColorKeypad, as well as third-party controllers. Remote monitoring and management can be done through the Interact Landmark system, providing easy control and monitoring for large installations.
With a luminaire output of 1,893 lumens and an efficacy of 398 lm/W, the Blast Powercore OptiField gen5 ensures energy-efficient lighting with exceptional output and color precision. The luminaire’s CRI is 93.5 at 2700K and 92.1 at 4000K, offering superior color rendering for both whites and saturated colors. The fixture’s RGBW channels provide a wide range of color effects, and with the inclusion of white LEDs, it guarantees high-quality white light as well as vibrant colors for creative lighting designs.
Features
- RGBW LED floodlight with Powercore technology for efficient power control
- OptiField technology ensures extremely uniform illumination with no hotspots or banding
- Delivers 1,893 lumens with an efficacy of 398 lm/W
- High CRI values of 93.5 at 2700K and 92.1 at 4000K for accurate color rendering
- Customizable beam angles with 10°, 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric) lenses
- Corrosion resistance compliant with ASTM B117 standard for > 1,500 hours
- Vibration resistance compliant with ANSI C136.31, 3G
- IP66-rated for use in dry, damp, and wet locations
- Temperature range: -40°F to 122°F operating, -4°F to 122°F startup, -40°F to 176°F storage
- Available in black, gray, or white finishes with optional glare shields and accessories
- Works with Color Kinetics and third-party controllers, and supports remote monitoring via Interact Landmark
Specifications
Output
- Beam: Wall Washing
- Lumens: 1,893
- Efficacy (lm/W): 398
- LED Channels: Red/Green/Blue/White
Electrical
- Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
- Power Consumption (Maximum at full output, steady state): 47.6 W
- Power Factor: 0.99 @ 120 VAC
- Surge Limits: 1KV maximum differential (L to N), 2KV maximum common (L to Gnd or N to Gnd)
Control
- Interface: Data Enabler Pro (DMX or Ethernet)
- Control Channels: 4 channels per luminaire
- Control System: ColorKinetics full range of controllers, including iPlayer 3, iPlayer 4, Antumbra iColorKeypad, and ColorDial Pro, or third-party controllers
- Remote Monitoring & Management: Works with Interact Landmark
Physical
- Dimensions: 7.2 x 13.2 x 6.74 inches
- Weight: 8.2 lbs
- Effective Projected Area (EPA): 0.73 ft2 (Luminaire plus Full Glare Shield)
- Housing Material: Die-cast aluminium, gray powder-coated finish
- Lens: Clear tempered glass
- Luminaire Connections: 1.8 m (6 ft) unified power/data cable
- Temperature Ranges: -40°F to 122°F Operating, -4°F to 122°F Startup, -40°F to 176°F Storage
- Vibration Resistance: Complies with ANSI C136.31, 3G
- Mechanical Impact: IK10
- Corrosion Resistance: Complies with ASTM B117 standard for > 1,500 hours
- Humidity: 0 to 95%, non-condensing
- Thermal Protection enabled
- Luminaire Run Lengths: To calculate luminaire run lengths and total power consumption for your specific installation, download the Configuration Calculator
Certification and Safety
- Approbation: UL/cUL, FCC Class A, CE, PSE, CQC, RCM, EAC, UA
- Environment: Dry/Damp/Wet Location, IP66
SPEC SHEET:
