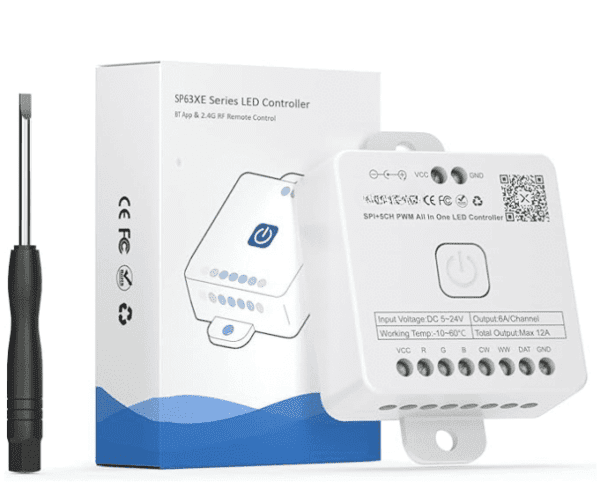

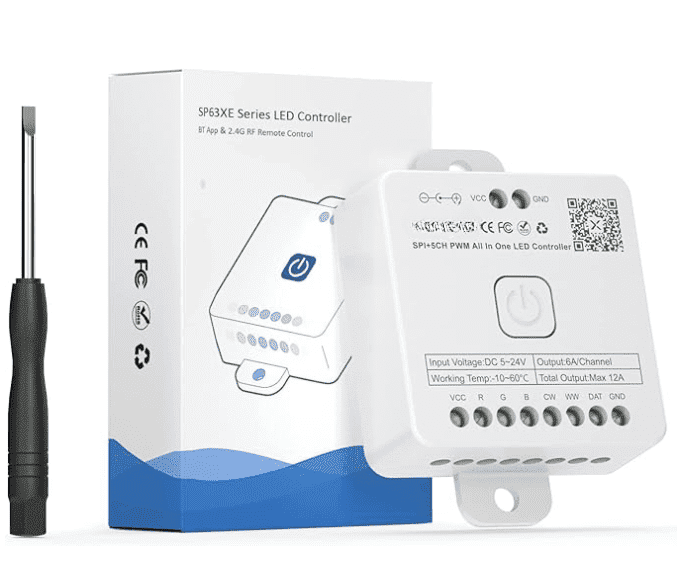

WDM Lighting 12-in-1 Bluetooth Controller
Transform your lighting experience with the WDM Lighting 12-in-1 Bluetooth Controller – the most versatile LED controller on the market. Whether you’re managing a commercial installation, upgrading your smart home, or creating dynamic entertainment spaces, this advanced controller supports 12 different LED strip types through one compact, powerful device.
Product Overview
Product Gallery
This controller represents the cutting edge of LED control technology, combining Bluetooth connectivity, music synchronization, and multi-zone control capabilities in one elegant package. Compatible with both PWM and SPI addressable LED strips, this controller offers unprecedented flexibility for any lighting project.
Key Features
🎵 Music Sync Technology
Three music capture modes bring your lights to life:
- Mobile phone microphone
- Player streaming
- Built-in microphone
Watch your LED strips dance and pulse perfectly in time with any audio source.
📱 Multiple Control Options
Control your lighting exactly the way you want:
- BanlanX App (iPhone/Android)
- 2.4G Touch Remote Control
- 2.4G Touch 86-Type Wall Panel

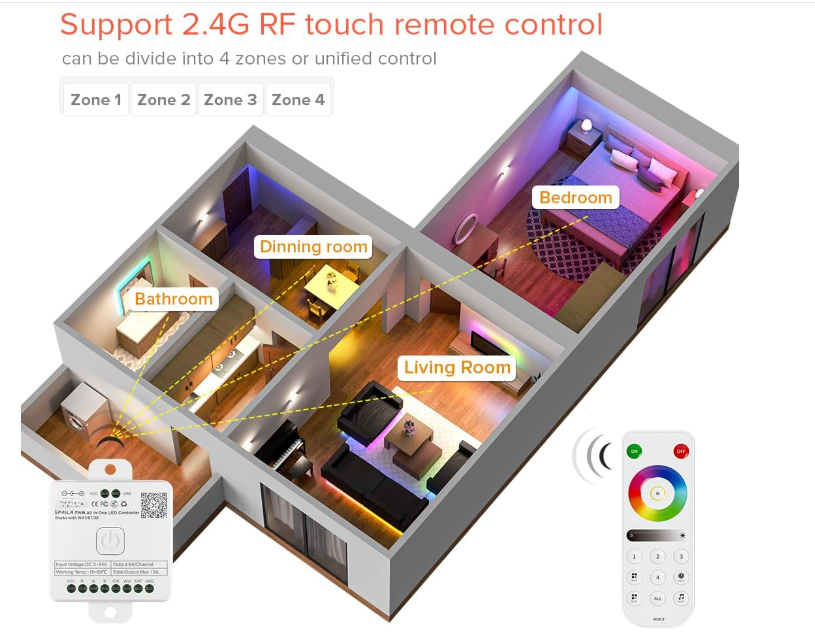

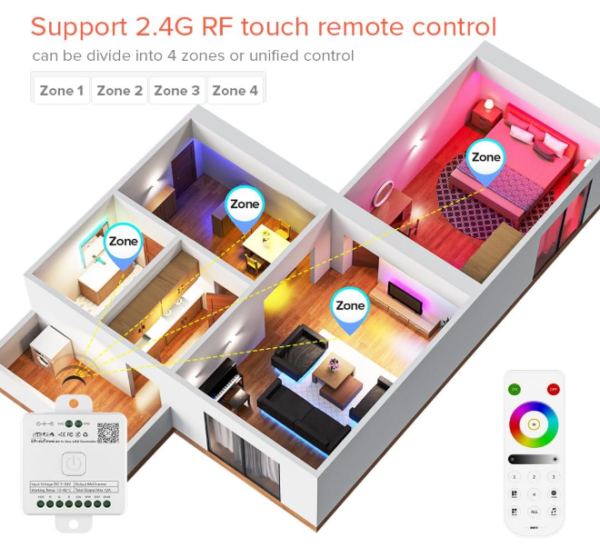

Supports both 4-zone partition control and unified (ALL) control modes.
💡 Universal Compatibility
One controller for all your LED strips:
- PWM LED strips (no IC chip)
- SPI addressable LED strips
- SPI+PWM combination strips
Supports popular models including WS2811, WS2812B, WS2813, WS2815, SK6812, and more.
⚡ Professional Grade Performance
- Power: DC 5V-24V (flexible voltage)
- Current: Up to 12A total output
- Channels: 6A max per single channel
- IC Support: Up to 600 ICs (RGB/CCT)

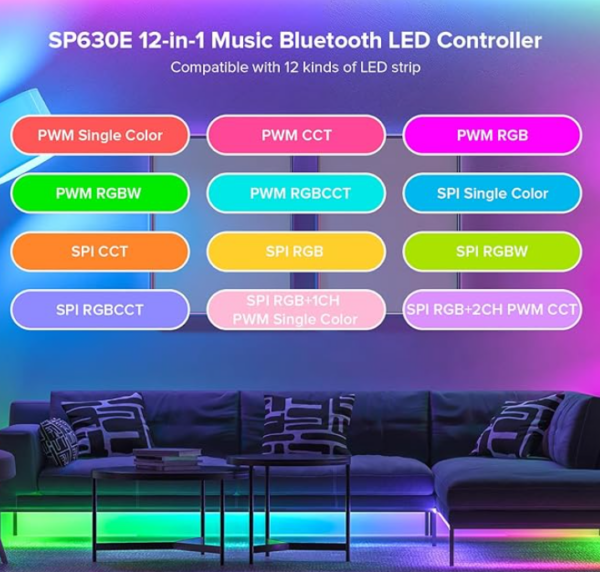

Supported LED Strip Types
PWM LED Strips (No IC Chip)
Full support for non-addressable LED strips:
- Single Color LED strips
- CCT (Tunable White) LED strips
- RGB LED strips
- RGBW LED strips
- RGBCCT LED strips
- Compatible with FC08, SMD5050, 3014, 3528, 5730, 5630, and other standard LED types
SPI Addressable LED Strips
Control individually addressable LED strips with advanced effects:
- Single Color, CCT, RGB, RGBW, and RGBCCT addressable configurations
- Dynamic lighting effects and animations
- Note: Does not support clock-based strips (SK9822, WS2801, APA102)
SPI + PWM Combination Strips
Control both addressable and non-addressable LEDs simultaneously:
- SPI RGB + 1 channel PWM (e.g., WS2815 RGB + FCOB single color)
- SPI RGB + 2 channel PWM (e.g., WS2815 RGB + FCOB CCT)
- Perfect for layered lighting designs
BanlanX App Features
The free BanlanX app gives you complete control with five dedicated pages:
- Dynamic Page: Access pre-programmed effects and animations
- Static Page: Select solid colors with full RGB control
- Music Page: Configure music synchronization settings and sensitivity
- Custom Page: Create and save your own lighting scenes
- Settings Page: Device naming, color correction, timer setup, and advanced configurations
Technical Specifications
| Specification | Details |
|---|---|
| Color | Multicolor |
| Brand | WDM Lighting |
| Indoor/Outdoor Usage | Indoor |
| Special Feature | Music Bluetooth LED Controller 12-in-1 |
| Light Source Type | LED |
| Power Source | AC/DC |
| Light Color | RGB |
| Theme | Music |
| Style | 12-in-1 Bluetooth Controller |
| Material | Plastic |
| Controller Type | Remote Control, Touch Panel Control, iPhone/Android |
| Number of Light Sources | 150 |
| Included Components | N/A |
| Number of Items | 1 |
| Control Method | Remote Control, iPhone/Android, Wall Touch Panel |
| Water Resistance Level | Not Water Resistant |
| Item Weight | 2.39 ounces |
| Package Dimensions | 5.87 x 5.04 x 0.91 inches |
| Item Model Number | WDM-BT-12IN1 |
| Special Features | Music Bluetooth LED Controller 12-in-1 |
| Batteries Required? | No |
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | 12-in-1 Music Bluetooth LED Controller (12-in-1: SPI IC chip LED strip + PWM LED strip) |
| Working Voltage | DC5V-DC24V (Controller voltage depends on LED strip) |
| Current | PWM Single Channel Maximum Output Current: 6A, Total Maximum: 12A |
| Control Modes | BalanX APP, 2.4G touch remote control, 2.4G touch panel |
| Support IC QTY | Single color, CCT, RGB: 600 IC max · RGBW: 450 IC max · RGBCCT: 300 IC max |
| Support IC Chip SPI | WS2811, WS2812, WS2813, WS2814, WS2815, TM1804, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, LB1934A, GW6205, GS8206, GS8208 etc |
| Support PWM Chip No IC | FC08, SMD5050, 3014, 3528, 5730, 5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B) 6pin RGBCCT(V+ R G B CW WW) |
| Packing List | 1X WDM Lighting 12-IN-1 Music Bluetooth LED Controller |
Installation & Setup
The WDM Lighting 12-in-1 Bluetooth Controller is designed for straightforward installation:
- Power Connection: Connect DC 5V-24V power supply matching your LED strip voltage requirements
- LED Strip Connection: Wire your LED strips to the appropriate output terminals (clearly labeled)
- App Download: Download the free “BanlanX” app from the App Store or Google Play
- Bluetooth Pairing: Open the app and pair with your controller
- Configuration: Select your LED strip type and customize settings
- Optional Accessories: Add 2.4G remote control or wall panel for additional control options (sold separately)
Applications
Perfect for a wide range of lighting projects:
- Residential: Under-cabinet lighting, cove lighting, accent lighting, entertainment rooms
- Commercial: Retail displays, restaurants, bars, hotels, office spaces
- Entertainment: DJ setups, event venues, theaters, gaming rooms
- Architectural: Facade lighting, landscape features, indoor installations
What’s in the Box
- 1x WDM Lighting 12-in-1 Bluetooth Controller
- 1x External Antenna
- Quick Start Guide
Note: Remote control and wall panel sold separately. Power supply and LED strips not included.
Transform Your Lighting Projects
The WDM Lighting 12-in-1 Bluetooth Controller offers unmatched versatility and control for any LED lighting project.
Professional-grade LED control for residential, commercial, and entertainment installations.
