WDM Driver/Dimmer-160-24-D-W
Driver & Dimmer Switch in One • 160W • 24VDC
The ultimate space-saving LED control solution. The WDM Driver/Dimmer-160-24-D-W combines a professional 160W LED driver and precision dimmer into one sleek, designer-style wall switch. Perfect for remodeling projects where hiding an LED driver is difficult or impossible, this innovative EnoDim Series switch simplifies installation, saves valuable space, and delivers smooth dimming down to 0.1% for COB LED tape and strip lighting.
Product Overview
Product Gallery
The EnoDim Series represents a breakthrough in LED control technology, integrating a powerful 160W driver with a precision dimmer in a standard wall switch form factor. This elegant solution features a large paddle switch for on/off control paired with a small dimming slider, fits standard wall plates, and eliminates the need for separate LED drivers and dimmer switches. With 94.5% efficiency, soft dimming down to 0.1%, no minimum load required, and wide compatibility with COB LED tape, it’s the smarter, all-in-one choice for your lighting projects.
Key Features
🔌 Integrated Driver & Dimmer
Combines 160W LED driver and precision dimmer in one elegant wall switch:
- Simplifies installation – no separate driver needed
- Saves valuable space behind walls
- Professional designer-style appearance
- Perfect for remodeling projects
Eliminates the challenge of hiding LED drivers in difficult installations.
💡 Smooth 0.1% Dimming
Professional dimming performance for perfect ambiance:
- 0.1% to 100%: Ultra-smooth dimming range
- No Flicker: Title 24 Part 6 compliant
- No Minimum Load: Works with any size installation
- Adjustable Output: Prevents voltage drop
Delivers cinema-quality dimming for residential and commercial applications.
⚡ 160W Power Output
Professional-grade power capacity:
- Input: 120VAC standard household power
- Output: 24VDC (24V-26V adjustable by knob)
- Efficiency: 94.5% at full load
- COB Compatible: Perfect for COB LED tape
Handles demanding LED installations with reliable, efficient performance.

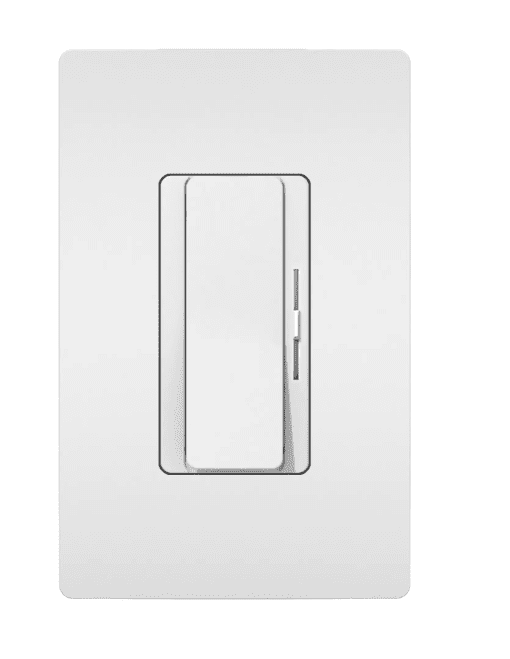

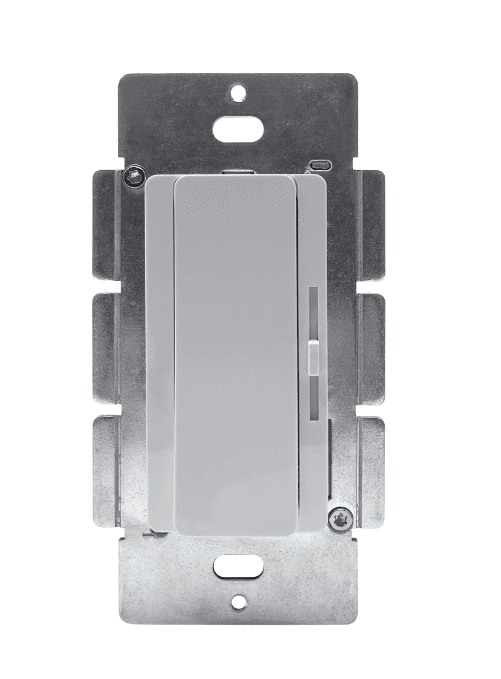

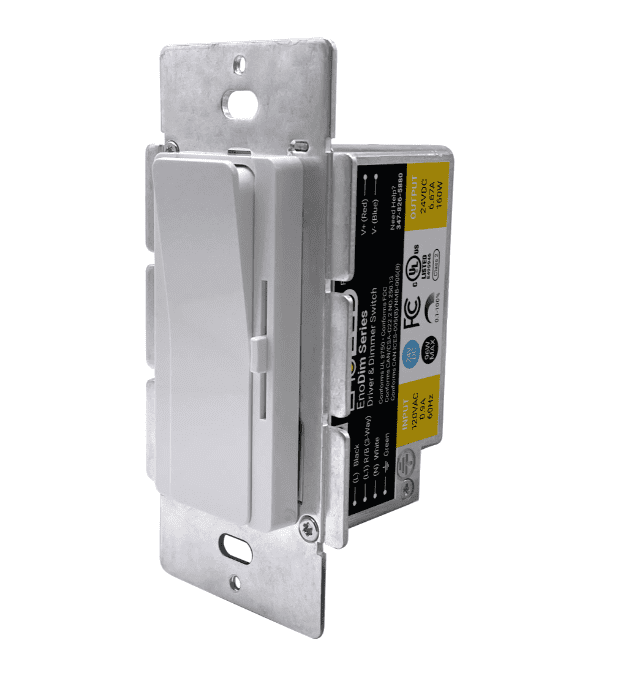

🎛️ Designer Wall Switch
Elegant control interface:
- Large Paddle Switch: Easy on/off control
- Dimming Slider: Intuitive brightness adjustment
- Standard Wall Plates: Fits any decor
- Single-Pole & 3-Way: Flexible installation options
Professional appearance that enhances any interior design.
Why Choose Integrated Driver/Dimmer?
The Traditional Challenge
Standard LED installations require separate components that complicate projects:
- LED driver hidden in ceiling, walls, or cabinets
- Separate dimmer switch on the wall
- Complex wiring between components
- Difficult troubleshooting and maintenance
- Limited space in remodeling projects
The WDM Solution
The WDM Driver/Dimmer-160-24-D-W simplifies everything:
- All-in-One Design: Driver and dimmer in single wall switch
- Space Saving: No need to hide bulky drivers
- Easy Installation: Standard wall box mounting
- Simple Maintenance: Accessible for troubleshooting
- Remodeling Perfect: Ideal when hiding drivers is impossible
- Professional Appearance: Clean, designer-style finish
Complete Feature Set
- Integrated Driver & Dimmer Wall Switch: All-in-one solution
- Designer-Style Wall Switch: Professional appearance
- Soft Dimming Down to 0.1%: Cinema-quality performance
- Single-Pole & 3-Way Compatible: Flexible installation
- Compatible with COB LED Tape: Premium LED compatibility
- No Minimum Load Required: Works with any size installation
- Fits Standard Wall Plates: Universal compatibility
- Retail-Ready Packaging: Professional presentation
- Prevents Drop with Adjustable Output: Voltage regulation
- Title 24 Part 6 Flicker Compliant: California energy standards
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | WDM Driver/Dimmer-160-24-D-W |
| Brand | WDM Lighting |
| Series | EnoDim Series |
| Max Power | 160W |
| Input Voltage | 120VAC |
| Output Voltage | 24VDC (24V-26V adjustable by knob) |
| Dimmable Range | 0.1% – 100% |
| Efficiency @ Full Load | 94.5% |
| Warranty | 5 Year |
| Dimensions (W × H × L) | 4.134″ × 2.126″ × 1.996″ |
| Switch Type | Paddle switch with dimming slider |
| Configuration | Single-Pole & 3-Way |
| Wall Plate Compatibility | Standard wall plates (Decora-style) |
| LED Compatibility | COB LED tape, LED strips |
| Minimum Load | None required |
| Compliance | Title 24 Part 6 Flicker Requirements |
| Color | White |
| Indoor/Outdoor Usage | Indoor |
Product Parameters
| Parameter | Specification |
|---|---|
| Driver Type | Integrated LED driver with dimmer control |
| Control Method | Paddle switch (on/off) + Sliding dimmer (brightness) |
| Voltage Adjustment | 24V-26V adjustable by rear knob |
| Installation Type | Standard wall box (single-gang) |
| Wiring Options | Single-pole or 3-way configuration |
| Heat Management | 94.5% efficiency reduces heat generation |
| Flicker Performance | Title 24 Part 6 compliant (flicker-free) |
| Drop Prevention | Adjustable output voltage prevents voltage drop |
Installation & Setup
The WDM Driver/Dimmer-160-24-D-W installs like a standard wall switch with additional LED connections:
Installation Steps:
- Power Off: Turn off power at circuit breaker
- Remove Old Switch: If replacing existing switch, remove it
- Wire Connections: Connect line voltage (120VAC) to input terminals
- LED Strip Connection: Connect 24VDC output to LED strips
- Voltage Adjustment: Use rear knob to adjust output voltage (24V-26V) as needed
- Mount Switch: Secure driver/dimmer in standard wall box
- Wall Plate: Install standard Decora-style wall plate
- Test Operation: Turn on power and test switch and dimming functions
Configuration Options:
- Single-Pole: Standard on/off control from one location
- 3-Way: Control from two locations (requires compatible 3-way switch)
- Voltage Fine-Tuning: Adjust output voltage to prevent voltage drop in long LED runs
Professional Installation Recommended: While designed for straightforward installation, this product should be installed by a qualified electrician familiar with line voltage (120VAC) electrical work and LED systems.
Applications
Perfect for a wide range of LED lighting installations:
Residential Applications
- Kitchen Lighting: Under-cabinet COB LED tape with elegant dimming control
- Living Spaces: Cove lighting, recessed lighting, architectural accents
- Bedrooms: Soft ambient lighting with low-level dimming
- Home Offices: Task lighting with adjustable brightness
- Entertainment Rooms: Theater-quality dimming for media spaces
- Bathrooms: Vanity lighting with precise brightness control
Commercial Applications
- Retail Displays: Product highlighting with adjustable illumination
- Restaurants: Dining ambiance control throughout the day
- Hotels: Guest room lighting, corridor illumination
- Offices: Task lighting, conference room control
- Healthcare: Patient rooms, examination areas
- Hospitality: Bars, lounges, spa environments
Remodeling Projects
- Space-Constrained Installations: Where hiding traditional drivers is impossible
- Historic Buildings: Minimal modification to existing structures
- Quick Renovations: Faster installation without driver placement challenges
- Cabinet Lighting: Under-cabinet and in-cabinet LED installations
LED Strip Compatibility
Optimized for COB LED Tape
The WDM Driver/Dimmer-160-24-D-W is specifically designed for premium COB (Chip-on-Board) LED tape:
- 24VDC COB LED Tape: All COB LED configurations
- High-Density LED Strips: Maximum 160W total power
- Single Color: White, warm white, cool white
- Tunable White: CCT adjustable LED tape (with compatible controller)
General LED Strip Compatibility
Also compatible with standard 24VDC LED strips:
- SMD5050, SMD2835, SMD3528 LED strips
- Flexible LED tape up to 160W
- Rigid LED bars (24VDC)
- LED strip lighting systems requiring 24V power
Important: This driver/dimmer outputs 24VDC only. Ensure your LED strips are rated for 24V operation. Not compatible with 12V LED strips without additional conversion.
What’s in the Box
- 1× WDM Driver/Dimmer-160-24-D-W (EnoDim Series)
- Installation Hardware (screws)
- Quick Start Installation Guide
- Spec Sheet: Download PDF
Note: Wall plate sold separately. LED strips and installation wire not included.
Simplify Your LED Installation
The WDM Driver/Dimmer-160-24-D-W combines professional 160W LED driver and precision dimmer in one elegant wall switch.
Perfect for remodeling projects, space-constrained installations, and premium COB LED tape lighting.
Why Choose WDM Lighting?
At WDM Lighting, we specialize in innovative LED control solutions that simplify installation while delivering professional-grade performance. The EnoDim Series represents our commitment to solving real-world installation challenges faced by contractors, electricians, and lighting designers.
Our integrated driver/dimmer technology eliminates the traditional complexity of LED installations, particularly in remodeling projects where space is limited and hiding drivers is challenging. With 94.5% efficiency, Title 24 compliance, smooth 0.1% dimming, and a 5-year warranty, the WDM Driver/Dimmer-160-24-D-W delivers reliable performance backed by expert technical support.
Whether you’re a professional installer managing complex commercial projects, a contractor working on residential remodels, or an electrician seeking elegant LED solutions, our team provides the technical expertise and product support to ensure your success.
5-Year Warranty • Title 24 Compliant • Made for Professional Installation
