WDM-Quad-SS-RGBW Fiber Optic Starlight Kit
32W Twinkle & Colorful Shooting Star • 4-Zone RGBW Control • 1000+ Fiber Strands
The WDM-Quad-SS-RGBW transforms any space into a mesmerizing starlight experience with its advanced 4-color RGBW light source and dynamic shooting star effects. Featuring 1000 pieces of premium 0.03″ diameter fiber optic strands at 13.1 feet length, plus 240 colorful meteor fiber strands, this professional starlight kit creates stunning twinkle effects and realistic shooting stars. With RF remote control, smartphone app integration, 4-zone independent control, and music synchronization, it’s perfect for car headliners, home theaters, bedrooms, and architectural lighting installations.
Product Overview
Product Gallery
The WDM-Quad-SS-RGBW represents the next generation of fiber optic starlight technology. This upgraded headliner kit features a powerful 32W RGBW light engine with 12 LED RGB 2-in-1 meteor shooting star effects, creating dynamic visual displays that captivate and inspire. The system includes 1000 premium end-glow fiber optic strands combined with 240 specialized meteor fiber strands, all precisely engineered for optimal light transmission and stunning starlight effects.
The advanced 4-port light engine allows independent control of each zone, enabling you to create custom color combinations and effects across different areas. Combined with music synchronization, 16 million color options, multiple dynamic modes, and both RF remote and smartphone app control, this kit delivers professional-quality starlight installations for automotive, residential, and commercial applications.
Key Features

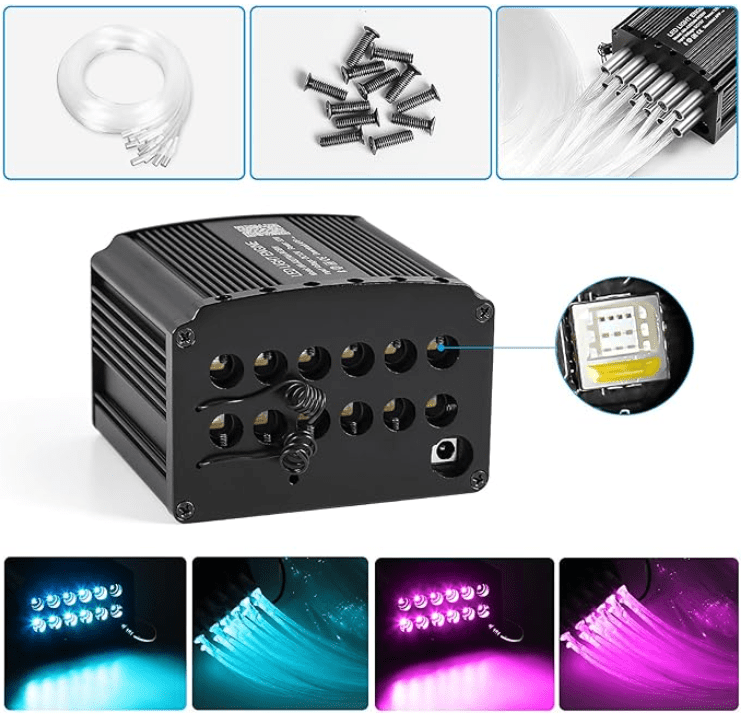

🌟 Dynamic Shooting Star Effect
Upgraded RGBW 2-in-1 meteor engine creates realistic shooting star displays:
- 12 LED RGB meteor shooting star engine
- 240 colorful meteor fiber strands included
- Realistic twinkling and shooting star animations
- Adjustable speed and brightness controls
Creates mesmerizing celestial effects that look like a real star-filled sky.
🎨 4-Zone RGBW Control
Independent control of 4 separate lighting zones:
- Quad Port Design: 4 independent light outputs
- Mix & Match: Set each zone to different colors simultaneously
- RGBW Colors: 16 million color options per zone
- Zone Modes: Different effects on different zones
Create complex, beautiful visual effects by combining zones with unique colors and modes.
🎵 Music Synchronization
Built-in sound-sensitive function syncs lights to music:
- 3 Audio Modes: Microphone, phone streaming, or external audio
- Beat Detection: Colors change with music rhythm
- Adjustable Sensitivity: Fine-tune audio response
- Real-Time Sync: Instant response to sound
Perfect for home theaters, entertainment rooms, and automotive audio systems.
📱 Dual Control System
RF Remote and smartphone app for comprehensive control:
- 28-Key RF Remote: Direct physical control up to 30 meters
- BanlanX App: iOS and Android smartphone control
- Car Charger Control: On/Off/Push 1-Button Switch
- Multiple Control Modes: APP or RF Remote operation
Choose your preferred control method for any situation or installation.
✨ 1000+ Premium Fiber Strands
Professional-grade PMMA fiber optic cables:
- 1000 End-Glow Strands: 0.03″ diameter × 13.1 ft length
- 240 Meteor Strands: Specialized shooting star fibers
- Mixed Diameters: 0.75mm, 1.0mm, 1.5mm for depth variation
- High Brightness: Superior light transmission
Creates a realistic night sky with depth, dimension, and stunning clarity.
🎬 20+ Dynamic Modes
Extensive lighting effects and control modes:
- Pure White Mode: Pristine white starlight
- 2 Jump Modes: Dynamic color transitions
- 7 Static Modes: Fixed color scenes
- Music Modes: Sound-reactive lighting
Professional mode selection for any mood, occasion, or application.
Why Choose the WDM-Quad-SS-RGBW?
The Standard Starlight Challenge
Traditional fiber optic starlight kits have significant limitations:
- Single color output with no zone control
- Static lighting without dynamic effects
- No shooting star or meteor capabilities
- Limited control options and customization
- Poor quality fibers with inconsistent brightness
The WDM Solution
The WDM-Quad-SS-RGBW delivers professional features and stunning results:
- 4-Zone Independent Control: Create complex color scenes across zones
- Dynamic Shooting Stars: Realistic meteor effects with 240 dedicated strands
- RGBW Color Engine: 16 million colors with purest white mode
- Music Synchronization: Lights react to sound in real-time
- Dual Control System: RF remote and smartphone app integration
- 1000+ Premium Fibers: Professional PMMA optic cables
- Easy Installation: Complete kit with all necessary components
Complete Feature Set
- 32W Twinkle & Colorful Shooting Star: High-power RGBW light engine
- 4-Color Light Source: Independent RGBW channel control
- 1000 Fiber Optic Strands: 0.03in × 13.1ft end-glow fibers
- 240 Meteor Fiber Strands: Dedicated shooting star effects
- 4-Port Light Engine: Quad zone independent control
- 12 LED RGB 2-in-1 Meteor Engine: 20+ effect modes
- Mixed Fiber Diameters: 0.75mm, 1.0mm, 1.5mm for depth
- RF Remote Control: 28-key wireless remote up to 30 meters
- BanlanX App Control: iOS and Android compatibility
- Music Synchronization: 3 audio capture modes
- 16 Million Colors: Full RGB color spectrum
- Purest White Mode: Dedicated white color setting
- 2 Jump Modes: Dynamic color transitions
- 7 Static Modes: Fixed color scenes
- 12V Safe Operation: Low voltage with circuit protection
- Waterproof & Weatherproof: Durable construction
- Memory Function: Remembers last settings
- Compact Design: Easy to hide and install
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | WDM-Quad-SS-RGBW Fiber Optic Starlight Kit |
| Brand | WDM Lighting |
| Power | 32W |
| Input Voltage | AC 86~265V 50/60Hz |
| Working Voltage | DC 12V |
| Light Color | 4PCS*RGBW (4-channel RGB + White) |
| Light Engine Material | Aluminum |
| LED Configuration | 12 LED RGB 2-in-1 meteor engine |
| Fiber Count | 1000 end-glow + 240 meteor strands |
| Fiber Diameter | 0.03in (main) / 0.75mm, 1.0mm, 1.5mm (mixed) |
| Fiber Length | 13.1ft / 4m |
| CFO Capacity | Up to 20 optical fibers per port (1mm diameter) |
| Ports | 4 independent light outputs |
| Remote Control | 28-key RF remote (up to 30m range) |
| App Control | BanlanX App (iOS and Android) |
| Color Options | 16 million colors |
| Lighting Modes | 20+ modes (Pure White, 2 Jump, 7 Static, Music Sync) |
| Music Sensitivity | 3 audio capture modes with adjustable sensitivity |
| Operating Temperature | -58℉ to 167℉ (-50°C to 75°C) |
| Protection | Short circuit protection, memory function |
| Waterproof Rating | Waterproof, low-heat design |
| Style | Modern, Star-shaped effect |
| Color | Multicolor |
| Finish | Unfinished (fiber ends) |
Control Modes & Features
Color Control Modes
- Pure White Mode: Press “RGB Mixed White” mode first, then cycle through pure white options (Purest White → Mixed White → Purest White). Each press toggles the bottom LED between pure and mixed white.
- 16 Million Colors: Full RGB color wheel with app control for precise color selection
- Static Color Modes: 7 preset static color scenes for quick selection
- Dynamic Color Modes: 2 jump modes with smooth color transitions
Music Synchronization Modes
- Mobile Phone Microphone: Captures sound through smartphone mic via app
- Player Streaming: Syncs directly with music playing on phone
- Built-in Microphone: High-sensitivity mic in light engine responds to ambient sound
- Adjustable Sensitivity: Fine-tune audio response through app settings
Zone Control Features
- Independent Zone Control: Set each of 4 ports to different colors or modes
- Synchronized Mode: All zones display the same effect simultaneously
- Mixed Zone Effects: Combine static and dynamic modes across zones
- Individual Brightness: Adjust brightness per zone through app

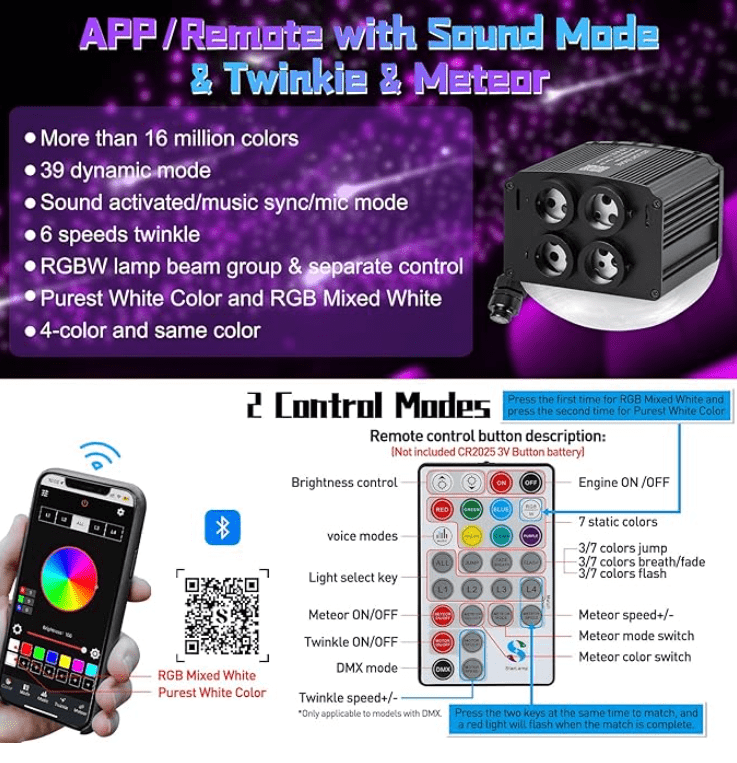

Control Options
- 28-Key RF Remote: Full wireless control up to 30 meters (98 feet)
- BanlanX App: Advanced smartphone control with additional features
- Car Charger Switch: Simple on/off/push 1-button control for automotive
- Memory Function: Automatically remembers last settings after power off

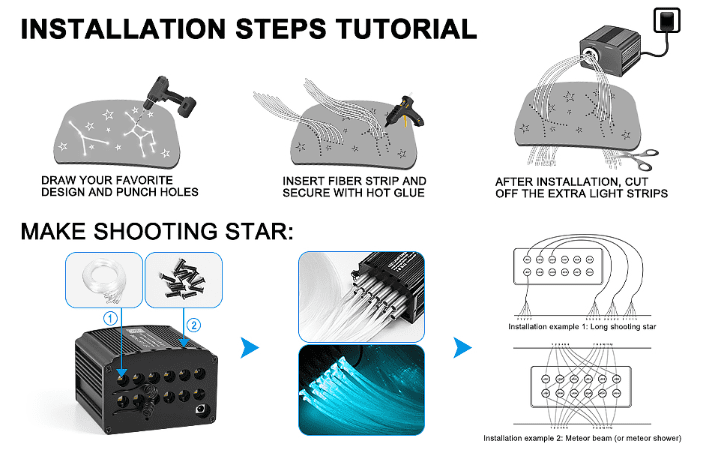

Installation & Setup
Installation Steps:
- Plan Layout: Determine fiber placement for desired starlight effect
- Mount Light Engine: Install 32W light engine in hidden location (under seat, trunk, behind panel)
- Connect Power: Wire light engine to 12V power source with included car charger adapter
- Route Fibers: Thread fiber optic strands through headliner, ceiling, or installation surface
- Distribute Zones: Divide fibers among 4 ports for zone control (up to 20 fibers per port)
- Secure Fibers: Use adhesive to hold fiber ends in place at insertion points
- Trim Fiber Ends: Cut fibers flush with installation surface for clean appearance
- Test System: Power on and test all zones, colors, and effects
- Pair Remote/App: Connect RF remote and BanlanX app to controller
Installation Locations:
- Automotive: Car headliners, trunk lids, door panels, footwells, dashboard accents
- Residential: Bedroom ceilings, home theater rooms, living room coves, bathroom accents
- Commercial: Bars, restaurants, clubs, lobbies, entertainment venues
- Architectural: Corridors, balconies, accent walls, ceiling features
Applications
Perfect for creating stunning starlight environments across diverse settings:
Automotive Applications
- Car Headliners: Transform any vehicle interior into a luxury starlight ceiling
- Trunk Installations: Create ambient lighting in trunk and cargo areas
- Door Panels: Add starlight accents to door cards and trim
- Footwell Lighting: Atmospheric lighting for front and rear footwells
- Dashboard Accents: Subtle starlight effects in dashboard areas
Residential Applications
- Master Bedrooms: Romantic starlight ceiling for relaxation and ambiance
- Children’s Rooms: Safe, magical night sky for kids’ bedrooms
- Home Theaters: Professional cinema atmosphere with twinkling stars
- Living Rooms: Architectural accent lighting in coves and recesses
- Bathrooms: Spa-like atmosphere with waterproof starlight installation
- Nurseries: Gentle starlight for nighttime comfort
Commercial Applications
- Restaurants: Romantic dining atmosphere with customizable starlight
- Bars & Nightclubs: Dynamic lighting that syncs with music and entertainment
- Hotels: Luxury amenity for premium suites and spa areas
- Event Venues: Customizable starlight for weddings and special events
- Retail Spaces: Attention-grabbing displays and unique store ambiance
- Spas: Relaxation-focused lighting with customizable colors
Entertainment Venues
- Home Theater Rooms: Professional cinema starlight ceiling installations
- Game Rooms: Dynamic lighting that enhances entertainment spaces
- Music Rooms: Sound-reactive lighting for musicians and audiophiles
- Clubs: Professional nightclub lighting with zone control and music sync
What’s in the Box
- 1× WDM-Quad-SS-RGBW 32W Light Engine (Aluminum housing)
- 1000× End-Glow Fiber Optic Strands (0.03in × 13.1ft)
- 240× Meteor Fiber Optic Strands (Colorful shooting star fibers)
- 1× 28-Key RF Remote Control
- 1× 12V Power Adapter with Car Charger
- 1× Installation Guide & User Manual
- Fiber Installation Tools (as applicable)
Note: BanlanX app is free to download from iOS App Store or Google Play Store.
Transform Your Space with Professional Starlight
The WDM-Quad-SS-RGBW delivers stunning fiber optic starlight with 4-zone control, shooting star effects, and music synchronization.
Perfect for automotive headliners, home theaters, bedrooms, and entertainment venues.
Why Choose WDM Lighting?
At WDM Lighting, we specialize in premium fiber optic starlight solutions that deliver professional-quality installations. The WDM-Quad-SS-RGBW represents the culmination of our expertise in fiber optic technology, offering advanced features like 4-zone independent control, dynamic shooting star effects, and comprehensive music synchronization capabilities.
Our starlight kits are engineered for both professional installers and DIY enthusiasts, featuring high-quality PMMA fiber optic cables, robust aluminum light engines, and intuitive control systems. With 1000+ premium fiber strands, 16 million color options, dual control via RF remote and smartphone app, and wide-ranging compatibility from automotive to architectural applications, the WDM-Quad-SS-RGBW provides exceptional value and stunning results.
Whether you’re creating a luxury car interior, designing a home theater, building a romantic bedroom retreat, or installing commercial entertainment lighting, our technical support team ensures your project succeeds. We stand behind our products with responsive customer service and comprehensive installation guidance.
Professional Quality • 4-Zone Control • Music Sync • 1000+ Fiber Strands • RF & App Control
