DMX Master RF Controller For DMX Decoders & RGB Fixtures

DMX Master RF Controller For DMX Decoders & RGB Fixtures



Product Description

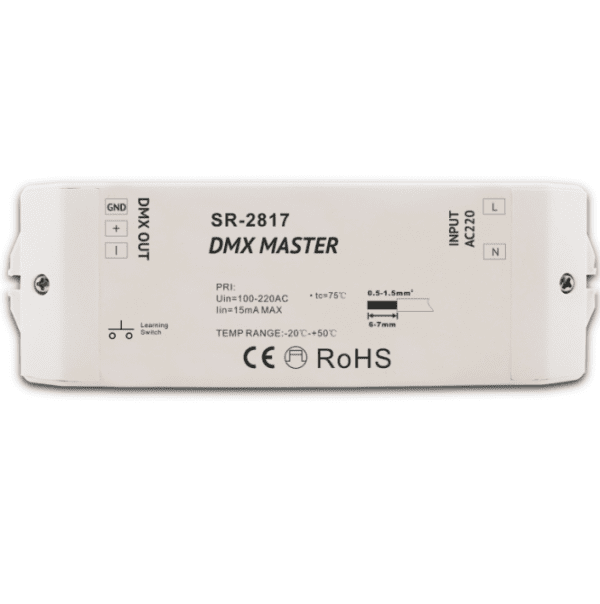

2817 DMX Master is DMX signal output to connect DMX decoders.  There are display boards and buttons on the DMX decoders that could set addresses. The DMX Master is designed to control your LED Lighting using one of our 4, 6 or 8 zone RF Controllers. The controls are simple and easy to use and can control up to 8 zones separately. Each zone requires its own separate receiver. The RF remote is also able to save 8 eight static colors and chase modes (10 built-in color chase modes available) and is capable of controlling a 4th White channel which is useful if your purchasing LED products like our LED RGBW Flexible strip light.

Once the DMX Master receives control information from your remote it converts that signal to DMX512 which can be received via our  DMX Decoder using the appropriate 2 core + screen cable. The DMX Master also, like many of our receivers has a learning button for link up with the remote. This is used not only to pair the 2 devices but to assign which zone you would like the RF controller to operate.

Download user manual.  Download cut sheet.

Additional Information

Weight 3 lbs
Master Type
