WDM-ELD-200W LED Driver
Professional 200W Plug-and-Play LED Power Supply - UL Certified, IP65 Weatherproof, 89% Efficient - No Electrician Required
View Product Details

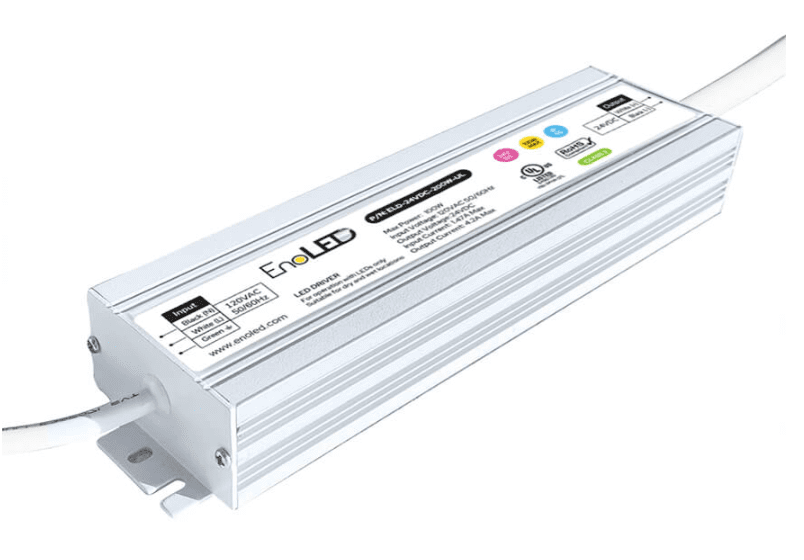

WDM-ELD-200W LED Driver
Professional-grade 200W LED power supply with plug-and-play convenience. UL certified, IP65 weatherproof rated, and 89% efficient for reliable residential and commercial installations up to 41 feet of LED strips.
Key Features at a Glance:
- 200W Power Capacity: 8.33A at 24VDC output
- Plug-and-Play Installation: Built-in 120V AC plug - no electrician needed
- UL Certified Safety: Meets North American safety standards
- IP65 Weatherproof: Dust and water jet protection
- 89% Efficiency: Minimal heat generation and energy waste
- 6-Year Warranty: Industry-leading reliability guarantee
📞 Call: 972-650-1855
Why Plug-and-Play LED Power Matters
🚫 The Problem
Traditional hardwired LED drivers require expensive electrician installation, junction boxes, electrical permits, and often building inspections. Homeowners and installers face hundreds of dollars in labor costs plus days of scheduling delays. Many DIY LED projects stall at the power supply stage due to electrical complexity and safety concerns.
✅ The Solution
The WDM-ELD-200W features a built-in 120V AC plug that connects directly to standard wall outlets—no electrician required. Simply plug it in, connect your 24V LED strips to the screw terminals, and power up. UL certification ensures professional-grade safety while IP65 weatherproofing protects your investment in any environment. Save hundreds in installation costs while maintaining commercial-grade reliability.
What Makes This Driver Different?
Most LED drivers require professional hardwiring and complex installation. The ELD-200W delivers professional-grade power with true plug-and-play convenience, comprehensive safety certifications, and weatherproof protection for any installation environment.
Plug-and-Play Installation
Built-in 120V AC plug connects directly to standard outlets. No electrician, no junction boxes, no wire nuts, no permits. Simply plug in and connect your LED strips to the 24VDC screw terminals. Save hundreds in installation costs.
200W Power Capacity
Delivers 8.33A at 24VDC for professional installations. Powers up to 41 feet of high-density RGB LED strips or 27 feet of RGBW strips. Perfect for whole-room installations, commercial displays, and architectural accent lighting.
IP65 Weatherproof Rating
Fully sealed against dust and protected from water jets from any direction. Safe for covered outdoor installations including patios, eaves, and pergolas. Approved for humid environments like bathrooms, kitchens, and commercial kitchens.
UL Certified Safety
Rigorous third-party safety testing ensures compliance with North American building codes. Insurance approved for residential and commercial installations. Professional-grade reliability you can trust for permanent installations.
89% Efficiency Rating
High-efficiency power conversion minimizes wasted energy and heat generation. Lower operating costs and reduced thermal stress extend component lifespan. Compact aluminum housing efficiently dissipates heat for reliable long-term operation.
Automatic Protection
Built-in overload and over-temperature protection with automatic reset. System recovers automatically when conditions normalize—no manual reset required. Prevents permanent damage and eliminates costly service calls for temporary overload events.
How Much LED Strip Can 200W Power?
Understanding power requirements helps you plan your LED installation. Use these guidelines to determine how many feet of LED strip lighting the ELD-200W can support.
| LED Strip Type | Power per Foot | Maximum Length (200W Driver) |
|---|---|---|
| Standard Density RGB | 4.8W/ft (60 LEDs/m) | ~41 feet |
| High Density RGB | 7.2W/ft (90 LEDs/m) | ~27 feet |
| Standard Density RGBW | 6.0W/ft (60 LEDs/m) | ~33 feet |
| High Density RGBW | 9.6W/ft (90 LEDs/m) | ~20 feet |
| COB LED Strip | 12W/ft (High Output) | ~16 feet |
| Addressable WS2812B | 14.4W/ft (60 LEDs/m) | ~14 feet |

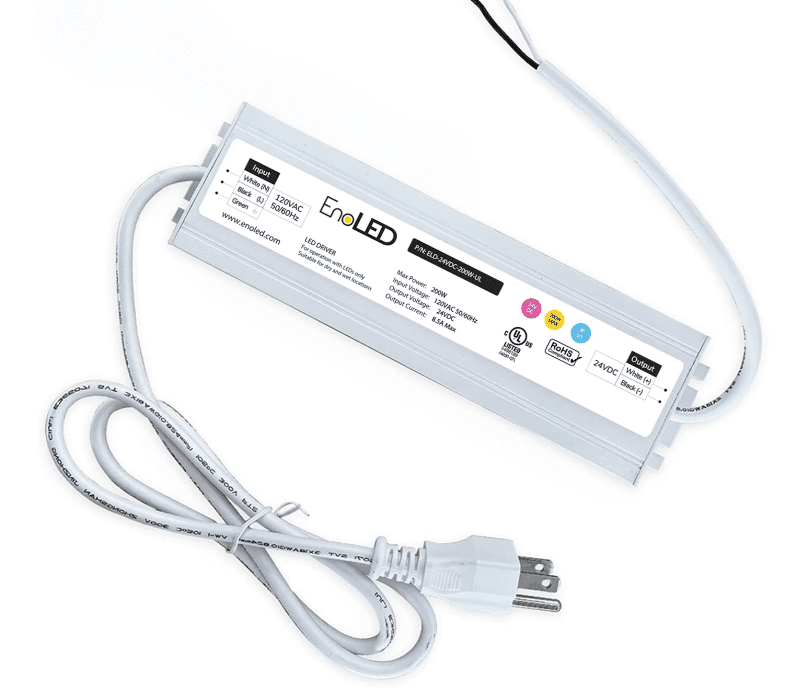

Technical Specifications
Power Specifications
- Maximum Power: 200W
- Input Voltage: 120VAC ±5%
- Output Voltage: 24VDC
- Output Current: 8.33A (at 24V)
Performance
- Efficiency: 89% at full load
- Dimmable: Non-Dimmable
- Protection: Overload, over-temp
- Reset: Automatic recovery
Certifications
- Safety: UL Listed
- IP Rating: IP65 (Weatherproof)
- Warranty: 6 Years
- Operating Temp: -4°F to 122°F
Physical Details
- Dimensions: 2.48" × 1.25" × 9.3"
- Material: Aluminum housing
- Installation: Plug-in (built-in AC plug)
- Output: Screw terminal 24VDC
📄 Download Complete ELD Specification Sheet (PDF)
Detailed technical specifications, wiring diagrams, and installation guidelines for the complete ELD driver line (60W, 100W, 150W, 200W models).
Complete ELD Driver Line
The EnoLED ELD driver line offers hassle-free installation across multiple power levels. All models feature the same plug-and-play convenience, UL certification, IP65 weatherproof rating, and high efficiency.
| Model | Power | Max Current | Typical LED Length |
|---|---|---|---|
| ELD-60W | 60W | 2.5A @ 24V | Up to 12 feet (high-density) |
| ELD-100W | 100W | 4.17A @ 24V | Up to 20 feet (high-density) |
| ELD-150W | 150W | 6.25A @ 24V | Up to 31 feet (high-density) |
| ELD-200W | 200W | 8.33A @ 24V | Up to 41 feet (high-density) |
All ELD drivers share the same 2.48" × 1.25" × 9.3" compact dimensions, 89% efficiency rating, 6-year warranty, and built-in overload/over-temperature protection.
Real-World Applications
From residential accent lighting to commercial installations and architectural projects, the WDM-ELD-200W adapts to any LED power requirement.
🏠 Residential
- Under-cabinet kitchen lighting
- Cove and crown molding accents
- Stairway and handrail lighting
- Outdoor deck and patio lighting
- Home theater LED strips
- Closet and pantry lighting
- Landscape path illumination
- Garage and workshop task lighting
🏢 Commercial
- Retail display case lighting
- Restaurant ambient lighting
- Hotel corridor and room accents
- Office architectural lighting
- Showroom product highlighting
- Reception area illumination
- Conference room accent lighting
- Waiting area ambient lighting
🏛️ Architectural
- Building facade lighting
- Interior cove lighting systems
- Feature wall illumination
- Column and pillar lighting
- Ceiling perimeter lighting
- Lobby architectural accents
- Atrium lighting features
- Stairwell accent lighting
📋 Signage & Display
- Channel letter illumination
- Backlit signage panels
- Window display lighting
- Menu board backlighting
- Trade show booth lighting
- Museum exhibit lighting
- Gallery artwork illumination
- Retail merchandising displays
Installation & Setup
The WDM-ELD-200W is designed for straightforward plug-and-play installation—no electrician required.
Step 1: Plan Your Installation
Choose installation location near standard 120V AC outlet. Calculate total LED strip power requirements (max 200W). Design for 80% capacity (160W) for optimal performance.
Step 2: Plug In Driver
Simply plug the ELD-200W into standard wall outlet. No hardwiring, junction boxes, or electrical permits required. Position in well-ventilated area for optimal cooling.
Step 3: Connect LED Strips
Wire LED strips to 24VDC screw terminal output. Verify correct positive/negative polarity. Use appropriate wire gauge for run length (14 AWG for up to 25 feet).
Step 4: Test & Secure
Power up and verify all LED strips illuminate properly. Secure wiring with appropriate strain relief. Mount driver in ventilated location away from direct weather exposure.
Professional Installation Tips:
- Use appropriate wire gauge: 14 AWG for runs up to 25 feet, 12 AWG for 25-40 feet, 10 AWG for 40-65 feet
- For outdoor covered installations, ensure driver is protected from direct weather exposure
- Allow adequate ventilation around driver housing for heat dissipation
- Design for 80% of maximum capacity (160W) for optimal performance and longevity
- Follow all local electrical codes and regulations
Frequently Asked Questions
Power Your LED Projects with Professional-Grade Performance
Experience true plug-and-play LED installation with the WDM-ELD-200W. UL certified safety, IP65 weatherproof protection, 89% efficiency, and 6-year warranty—everything you need for reliable residential and commercial LED lighting projects.
200W Power • 24VDC Output • IP65 Rated • UL Certified • 89% Efficiency • 6-Year Warranty • Plug-and-Play Installation
Order Now - $122📞 Call: 972-650-1855
Why Choose WDM Lighting?
WDM Lighting provides professional-grade LED power solutions designed for installers and integrators who demand reliability. The EnoLED ELD driver line eliminates installation complexity while maintaining the safety certifications and performance features required for professional projects.
Available in 60W, 100W, 150W, and 200W models, each driver features the same plug-and-play convenience, UL certification, IP65 weatherproof rating, and industry-leading 6-year warranty. Whether you're installing residential accent lighting, commercial architectural projects, or outdoor signage, WDM Lighting delivers the power, protection, and peace of mind your projects deserve.
Our commitment to quality means every ELD driver undergoes rigorous testing and carries full UL certification. With over a decade of experience in LED lighting solutions, we understand the unique requirements of different installations and provide the technical expertise to help you select the perfect components for your specific needs.
