10DBR Downlight

10DBR Downlight

Call for Price

This product is currently out of stock and unavailable.

SKU: UFO-10DBR-W Category:

Product Description

The UFO 10DBR Downlight is an adjustable downlight fitting with trumpet, secured with supplied hardware. Available in a white finish only, this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable. Also suitable for mounting in the base of a display case and illuminating upwards.

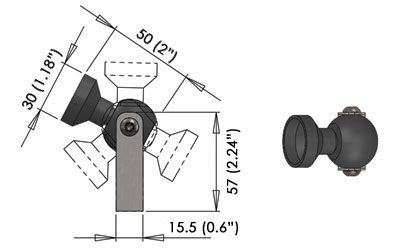

Technical Specifications Lens:

  • Clear focusing lens
  • Material: Aluminum; stainless steel; polycarbonate
  • Colors available: White
  • Focus range: 25° – 45°
  • Trumpet size: 30mm (1.18″)
  • Tilt: 360°
  • Weight: 140.7g (0.31lb)
  • Mounting method: M6 Screws
  • Ferrule size: M10 or 8mm (0.31″)smooth
  • Min. fiber size: 2mm (0.08″) Max. fiber size: 8mm (0.31″)

Download specification sheet.

Download installation guide.

Additional Information

Weight 0.3125 lbs
Ferrule Size
