7 Watt LED Single Port Illuminator with Dimming Feature

7 Watt LED Single Port Illuminator with Dimming Feature


SKU: MK-WDM-501 Category:

Product Description

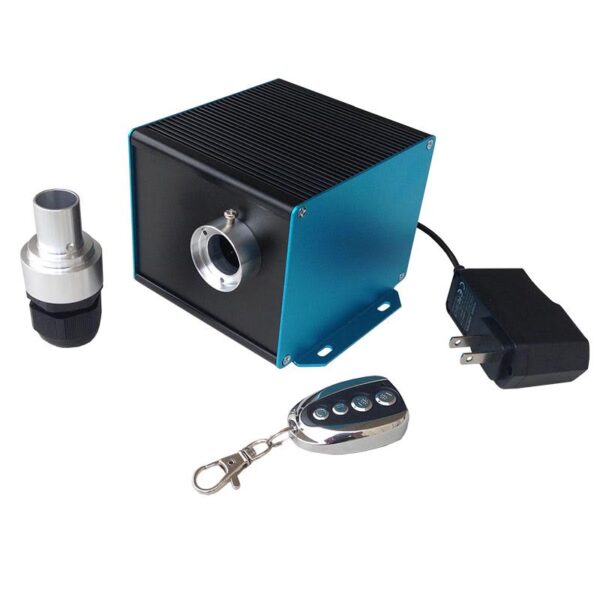

Exclusive new Wiedamark LED 7W Fiber Optic Light Engine.  Designed for star ceiling type applications, this is the perfect solution to light your project. The illuminator has an installed twinkle wheel that creates an incredible shimmering effect. A key chain remote controller is also included with this kit. Because it uses LED technology, you won’t have to worry about changing out the bulb as LEDs have a very long life and are very energy efficient.

Main features:

  • 1pc 7W high power LED
  • Size: 4.92 in x 5 in x 3.15 in
  • Voltage: 12VDC Transformer Included.
  • Accepts 100/240VAC and European Adapters available as a related product.
  • Includes Remote with on/off button and 8 levels of dimming.
  • Retains memory of dim level when powered off and back on with the remote.
  • The capacity of 400 strands of 0.75mm end lit fiber optic cable
  • Aluminum case with special design to well release heat
  • Constant current adapter to last the life of LED, reaching 50,000 hours.
  • Standard white twinkle wheel included

Download the owner’s manual.
Download maximum fiber capacity for this light engine by type.

Battery for the Remote: The battery for the remote is a 12 Volt (MN27, A27, or 27). The battery actual dimensions are 1″ x .30″ or 28mm x 7.75mm. Note: Be extremely careful when removing the three (3) tiny screws out of the remote. The screws are holding the entire remote casing together.

Weight 2 lbs
