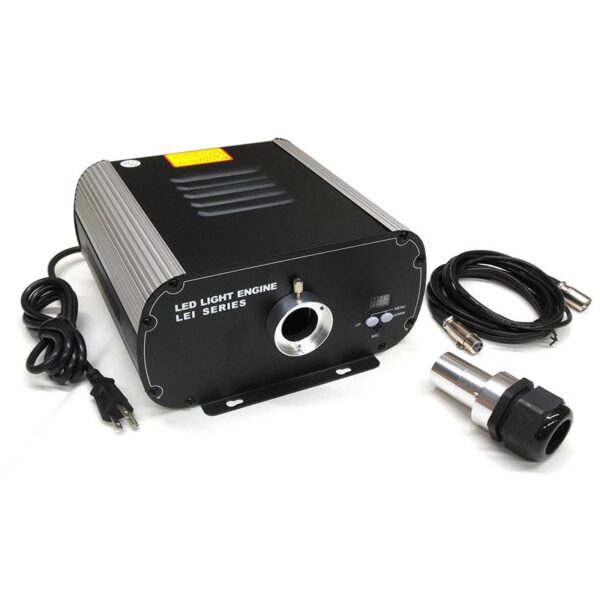

80 Watt LED DMX Illuminator HOT SELLER

80 Watt LED DMX Illuminator HOT SELLER

$807.45

SKU: MK-LEI-8001DMX Category:

Product Description

Perfect replacement for 150w metal halide fiber optic illuminators. This 80w light engine produces 4300 lumens on white and offers all the benefits of led lighting.

Functions:

  • 6 colors magenta, blue, green, yellow, sky blue & white
  • Standard DMX512 signal control or master/slave control
  • 5 dmx channel, 14 preset programs
  • ch1: color ch2: speed ch3: dimmer ch4: strobe
  • Audio control
  • Constant current to last life of led
  • 8 level speed setting
  • 8 level brightness adjust
  • New functional 15 buttons remote controller
  • LCD screen shows the program you choose
  • Max capacity of 1050pcs 0.75mm fiber

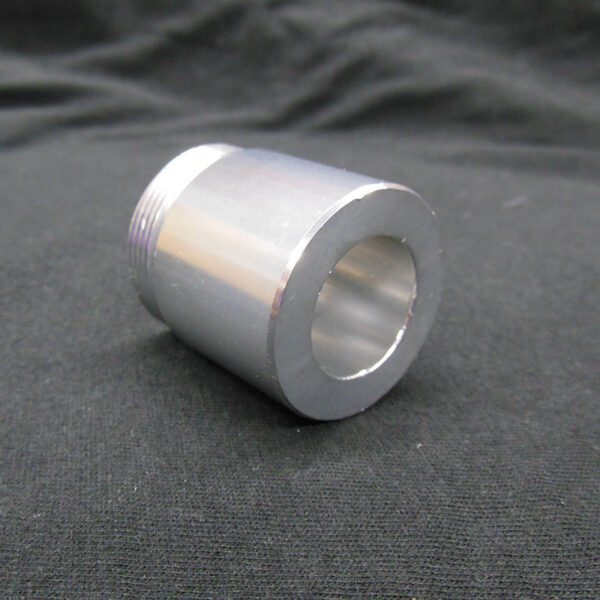

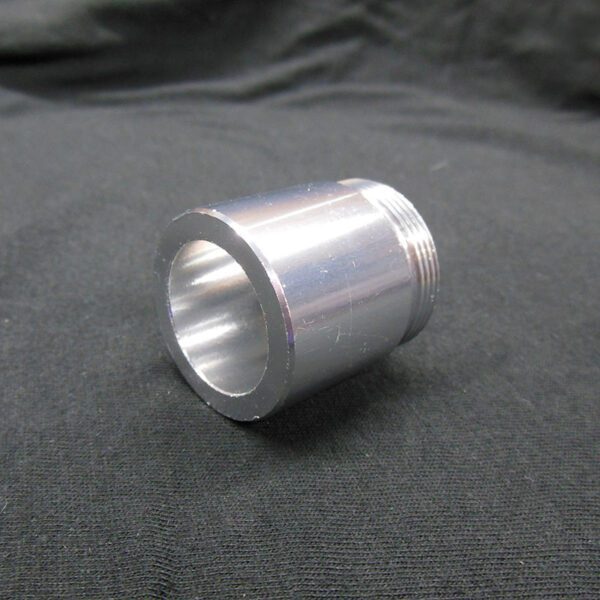

  • Ships with three ferrule reducers: 27mm (1.06″), 24 (.90″) & 20mm ( .78″) openings.

Features:

  • High efficiency led light source.
  • Compact design.
  • No electricity or heat at the illumination point.

Applications include:

  • Ambient lighting downlight applications. simply add lenses to the end of the stranded fibers and you’ve created a super-efficient replacement for 3-4 40-50 watt bulbs

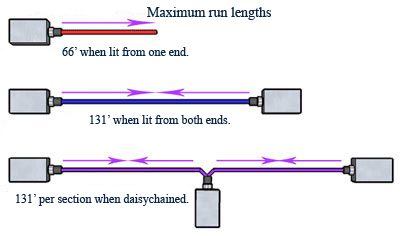

  • Architectural lighting applications: light more than 100 ft of solid core fiber with neon-like color!
  • Under-cabinet lighting for residential and commercial uses
  • Entertainment lighting.
  • Fiber illumination
  • Neon light replacement
  • Indoor Illumination.

Download a User Manual

Ferrule size chart

Download fiber optic solid core side glow ferrule cable capacity.





Download maximum fiber capacity for this light engine by type.



Weight 16 lbs
