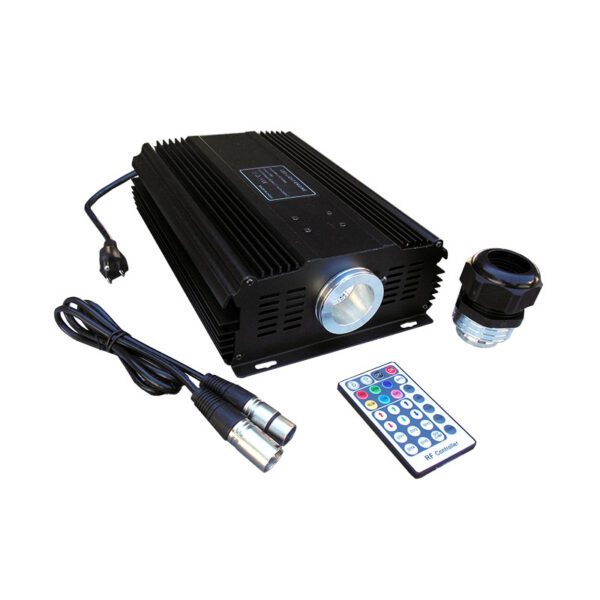

75 Watt RGBW LED Fiber Optic Illuminator DMX Capable

75 Watt RGBW LED Fiber Optic Illuminator DMX Capable


Product Description

Technical Specification

  • Input voltage: AC86-265V
  • POWER: 75W
  • Output gray level: 256
  • Input Signal: DMX512/1990 Output
  • DMX : 3 channels( RGB)
  • DMX512 socket standard XLR;
  • Gross Weight: 7.7 lbs
  • Light source device size: 10.9″ x 7.7″ x 3.1″
  • Fiber head inner diameter: 29mm
  • Light body material: Aluminum
  • Remote: RF
  • Remote dimension: L85× W52 × H7mm
  • Lifetime: 50,000 hours
  • Warranty: 2 years

Download the user manual PDF.  Download maximum fiber capacity for this light engine by type.

Weight 8 lbs
