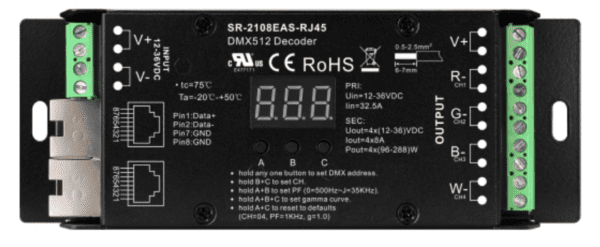

Sunricher SR-2108EAS-RJ45 DMX/RDM Decoder & Controller
The SR-2108EAS-RJ45 is a 4-channel constant voltage DMX & RDM controller designed for high-performance LED lighting applications, supporting true 16-bit PWM resolution for smooth dimming and precise control. It operates in both master and slave modes, allowing for quick and simple switching as needed.
Engineered for compatibility, this controller fully supports the latest DMX512, DMX512(1990), DMX512-A, and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols. Each of the 4 output channels delivers up to 8A constant voltage output, available in 12VDC, 24VDC, or 36VDC models. For ease of installation, the SR-2108EAS-RJ45 features tool-free wiring terminals that eliminate the need for screws.
Key Features
- DMX512 Compliant – Standard DMX512 control interface
- RDM Support – Enables remote device management
- 4 PWM Output Channels – Common anode, constant voltage design
- Manual Addressing – Easily set DMX addresses
- Flexible Channel Control – Adjustable from 1CH to 4CH
- Wide Frequency Range – PWM output frequency adjustable from 200Hz to 35kHz
- Customizable Dimming – Gamma curve adjustable from 0.1 to 9.9
- Power Expansion – Works with power repeaters for unlimited output extension
- Durability – IP20 protection rating
