WDM-Bluetooth Remote Control
The WDM-Bluetooth Remote Control is an all-in-one LED controller that seamlessly integrates with various types of LED light strips. Featuring 2.4GHz wireless technology with an impressive 98-foot range, this RF remote provides professional-grade control for both PWM and SPI addressable LED strips through intuitive 4-zone management.
Product Overview
Product Gallery
The WDM-Bluetooth Remote Control combines RF wireless technology with comprehensive LED strip compatibility, offering professional installers and enthusiasts a reliable solution for controlling complex lighting installations. Compatible with the BanlanX app ecosystem, this remote seamlessly integrates with existing WDM Lighting controllers while providing standalone control capabilities.
About This Product

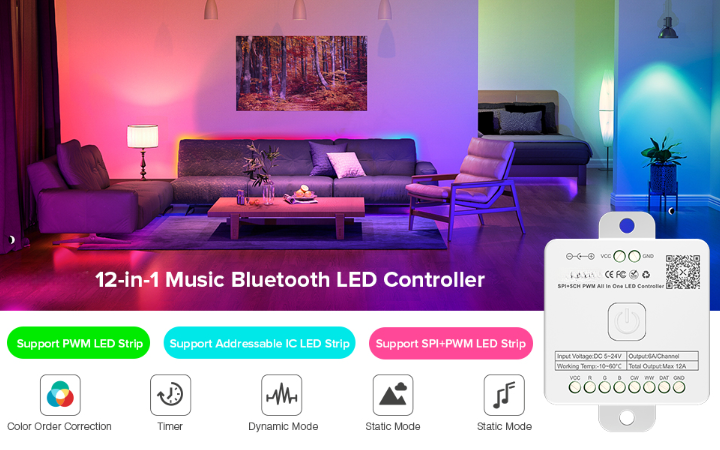

All-in-One LED Controller
This remote control is compatible with various types of LED light strips, including both SPI addressable strips (like WS2811, WS2812B, WS2813, WS2815, SK6812) and PWM strips (4CH RGB, 5CH RGBW LED strips).
Special Functions
Features three kinds of collection methods for versatile control:
- Mobile Phone Microphone: Capture ambient audio through your smartphone
- Player Streaming: Sync directly with music playing on your device
- Built-In High-Sensitivity Microphone: Standalone audio reactive capabilities
The BanlanX app supports 8 kinds of on/off animations and offers the power-on state feature. Four APP operating interfaces provide static color effect, dynamic effect, music effect, and DIY effect. Timing function allows you to set up to 5 timers for automated control.

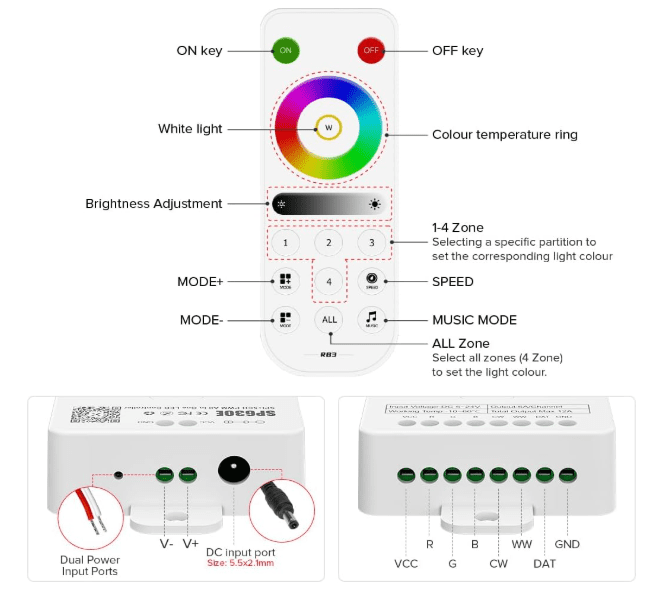

Remote Control Capabilities

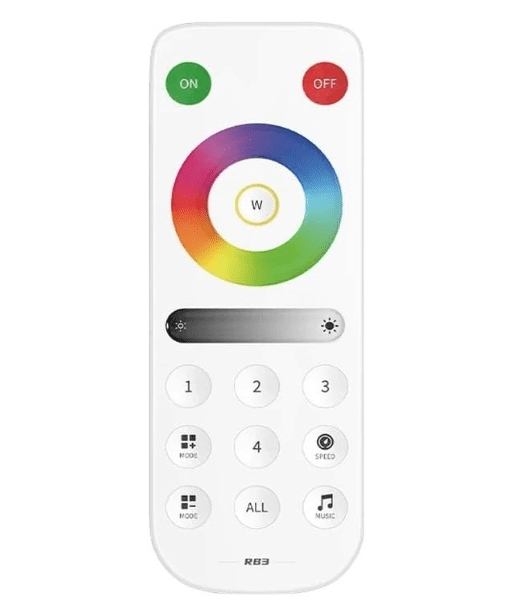

The RF remote provides extensive control options:
- Control up to 4 zones independently
- Supports one-to-many control (one remote, multiple controllers)
- Supports multi-to-one control (multiple remotes, one controller)
- Can control multiple controllers simultaneously
- Compatible with other remote controls for flexible installation
2.4GHz Wireless Technology
Experience reliable control with impressive range:
- Range: Up to 30 meters (98 feet) control distance
- Zone Management: Control up to 4 groups of lights
- Individual Control: Each group can control an LED strip within 30 meters
- Flexibility: Remote allows free control at a distance of 30 meters from each space
DIY Customization
Through the BanlanX app, you can customize your favorite lighting effects to meet your various needs. The app provides intuitive controls for creating custom scenes, adjusting colors, setting animations, and programming automated sequences.
Note: BanlanX APP does not support the group function for this model.
Key Features
🎵 Music Synchronization
Three audio capture modes for dynamic lighting:
- Mobile phone microphone
- Player streaming integration
- Built-in high-sensitivity microphone
Create immersive audio-reactive lighting experiences that pulse and dance with your music.
📱 BanlanX App Integration
Complete control through your smartphone:
- 8 on/off animations
- Static color selection
- Dynamic effect library
- Music synchronization settings
- DIY custom effects
- 5 programmable timers

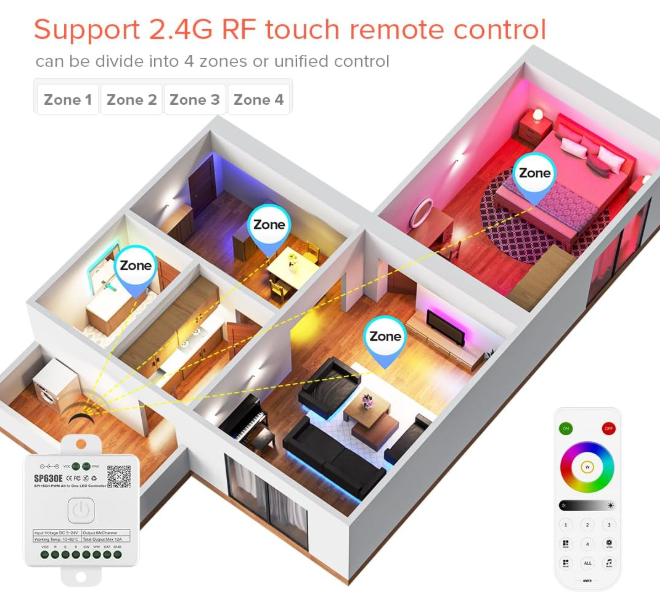

🎛️ 4-Zone Control
Professional multi-zone management:
- Control up to 4 independent zones
- One-to-many control support
- Multi-to-one control support
- Compatible with multiple remotes
- 30-meter range per zone
💡 Universal Compatibility
Works with all major LED strip types:
- SPI Addressable: WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812
- PWM Strips: 4CH RGB, 5CH RGBW
- LED Matrix: WS2812B matrices up to 32×32
- FCOB and SMD5050 strips
Technical Specifications
Parameter Table
| Parameter | Specification |
|---|---|
| Compatible LED Strip Lights | SPI RGB/RGBW LED strip or PWM 4CH RGB/5CH RGBW LED strip |
| Input Voltage | DC5V-DC24V (Controller voltage depends on LED strip) |
| Current | PWM Single Channel Maximum Output Current: 6A, Total Maximum: 12A |
| Waterproof Level | IP30 Non-waterproof |
| Operation Temperature | -4℉ ~ 140℉ (-20℃ ~ 60℃) |
| On/Off Animations | Set on/off animations and the default power-on state |
| APP Name | BanlanX |
| Support IC QTY | SPI RGB IC: 1200 IC max · SPI RGBW IC: 900 IC max |
| Support IC Chip (SPI) | WS2811, WS2812, WS2813, WS2814, WS2815, SK6812 LED Strip |
| Support PWM Chip No IC | FCOB, SMD5050 4pin RGB (V+ R G B), 5pin RGBW (V+ R G B W) LED Strip |
| Support SPI LED Matrix | WS2812B LED Matrix: 8X8, 8×16, 8×32, 11×44, 16×16, 32×32 etc. Max 1200 pixels |
| Wireless Technology | 2.4GHz RF |
| Control Distance | Up to 30 meters (98 feet) |
| Zone Control | 4 independent zones |
Installation & Setup
Setting up your WDM-Bluetooth Remote Control is straightforward:
- Controller Connection: Connect the remote receiver to your LED controller (sold separately)
- Power Supply: Ensure your LED controller has proper DC 5V-24V power supply matching your LED strip voltage
- LED Strip Connection: Wire your LED strips to the controller’s output terminals
- Remote Pairing: Press the pairing button on the remote to sync with the controller
- Zone Configuration: Set up your 4 zones using the zone selection buttons
- App Download: Download the free “BanlanX” app from the App Store or Google Play for advanced control
- Testing: Test each zone and verify proper operation before final installation
Applications
The WDM-Bluetooth Remote Control is perfect for:
Residential
- Home lighting automation
- Entertainment room control
- Multi-room lighting systems
- Under-cabinet and accent lighting
- Home theater ambiance
Commercial
- Restaurant and bar lighting
- Retail display illumination
- Hotel and hospitality
- Office space management
- Showroom installations
Entertainment
- DJ and stage lighting
- Event venue control
- Theater productions
- Gaming setups
- Concert and performance spaces
Architectural
- Building facade lighting
- Landscape installations
- Interior architectural features
- Multi-zone commercial spaces
- Large-scale installations
What’s in the Box
- 1x WDM-Bluetooth Remote Control
- Batteries (included)
- Quick Start Guide
Note: LED controller, power supply, and LED strips sold separately. This remote is designed to work with WDM Lighting controllers and other compatible LED control systems.
Package Contents
Your purchase includes:
- 1x RF Remote Controller
- 1x WDM-Bluetooth Remote Control unit with integrated receiver
Professional RF Control for LED Systems
Experience the convenience of wireless LED control with 4-zone management, 98-foot range, and seamless BanlanX app integration.
Perfect for residential, commercial, and entertainment lighting installations.
Compatibility Notes
LED Strip Compatibility:
- Works with WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812 addressable LED strips
- Compatible with PWM RGB and RGBW LED strips
- Supports LED matrices up to 32×32 (1200 pixels max)
- Works with FCOB and SMD5050 strip types
Controller Compatibility:
- Designed for use with WDM Lighting controllers
- Compatible with 2.4GHz RF receiver-equipped controllers
- Works with DC 5V-24V LED control systems
- Supports both single controller and multi-controller installations
Why Choose WDM Lighting?
At WDM Lighting, we specialize in providing professional-grade LED control solutions backed by expert support. Our products are engineered for reliability and designed to work seamlessly together, creating a comprehensive lighting control ecosystem. Whether you’re a professional installer managing complex commercial projects or an enthusiast building your smart home, our team provides the technical support and product expertise to ensure success.
The WDM-Bluetooth Remote Control represents our commitment to combining advanced features with user-friendly operation, delivering professional capabilities at an accessible price point.
