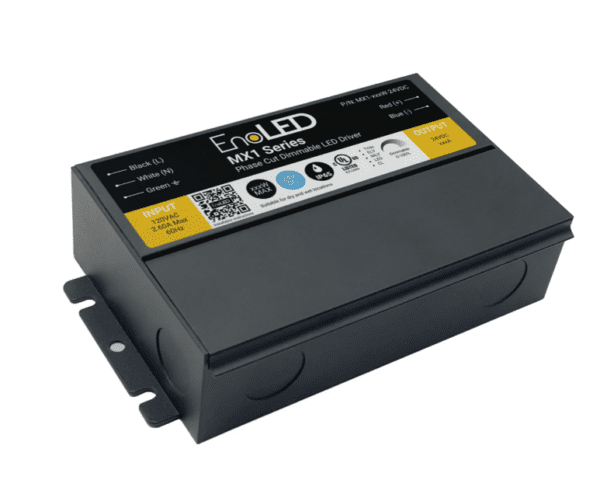

WDM-MX1-Dimmable Driver
The Smallest 300W Dimmable LED Driver • Built-in J-Box • IP65 Rated
The WDM-MX1 represents the pinnacle of compact, high-power LED driver design. As the smallest 300W dimmable LED driver on the market, it combines professional-grade power delivery with a built-in junction box and IP65 weatherproof rating. Compatible with any CLF/LED/MLV/ELV dimmer switch, this MX1 Series driver delivers smooth, flicker-free dimming and is easy to hide in tight spaces, making it the ideal solution for both dry and wet location installations where space is at a premium.
Product Overview
The MX1 Series sets a new standard for high-power dimmable LED drivers. With 300W of reliable output in an ultra-compact form factor, this driver features a built-in junction box for streamlined installations, IP65 protection for indoor and outdoor use, and universal compatibility with leading and trailing edge dimmer switches. Operating at 90% efficiency with overload and short circuit protection, the WDM-MX1 delivers professional performance in the smallest possible package.
Perfect for installations where space is limited, the integrated junction box eliminates the need for separate electrical boxes, simplifying installation and reducing overall system size. Whether you’re working in ceiling cavities, under cabinets, behind coves, or in outdoor architectural lighting, the WDM-MX1’s compact design and weatherproof construction ensure reliable operation in the most challenging environments.
Key Features
🏆 Smallest 300W Driver
Industry-leading compact design with maximum power:
- 300W Output: Professional-grade power capacity
- Ultra-Compact: 3.85″ × 1.64″ × 6.57″ dimensions
- Space-Saving: Easy to hide in tight spaces
- Professional Installation: Perfect where space is limited
The smallest footprint available for 300W dimmable LED drivers.

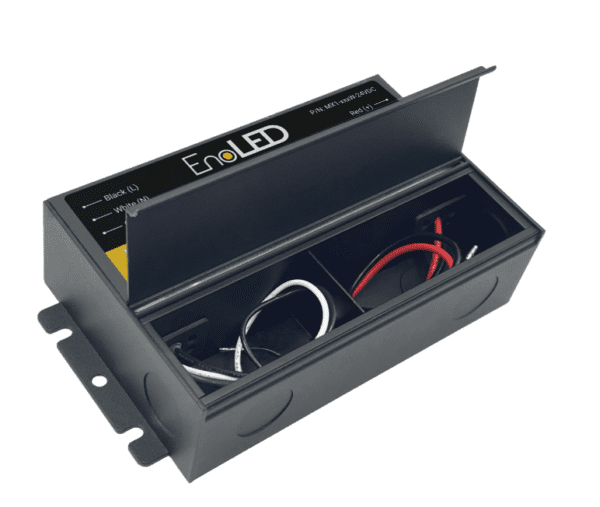

📦 Built-in Junction Box
Integrated J-Box simplifies installation:
- All-in-One Design: No separate junction box needed
- IP65 Rated: Weatherproof for wet and dry locations
- Quick Installation: Simplified wiring connections
- Space Efficient: Reduces overall installation size
Streamlines installation while providing weatherproof protection.
💡 Universal Dimmer Compatible
Works with any standard dimmer switch:
- CLF/LED/MLV/ELV: Leading or trailing edge
- Smooth Dimming: Flicker-free performance
- Flexible Control: Use your preferred dimmer brand
- Professional Results: Reliable dimming operation
Compatible with Lutron, Leviton, and all major dimmer brands.
⚡ 90% Efficiency
High-efficiency operation with protection:
- Energy Efficient: 90% efficiency at full load
- Overload Protection: Built-in safety features
- Short Circuit Protection: Reliable operation
- 24VDC Output: Standard LED strip voltage
Professional-grade reliability with comprehensive protection.
Why Choose the MX1 Series?
The Space Challenge
Traditional 300W LED drivers present significant installation challenges:
- Large, bulky form factors difficult to hide
- Separate junction boxes required
- Limited mounting options in tight spaces
- Difficult to install in ceiling cavities and compact areas
- Additional components increase complexity
The MX1 Solution
The WDM-MX1 solves these challenges with innovative engineering:
- Ultra-Compact Design: Smallest 300W driver available
- Integrated J-Box: No separate junction box needed
- IP65 Protection: Indoor and outdoor installation flexibility
- Universal Compatibility: Works with any dimmer switch
- Easy Concealment: Fits where traditional drivers cannot
- Professional Performance: Smooth, flicker-free dimming
Complete Feature Set
- Smallest 300W Dimmable LED Driver: Industry-leading compact design
- Built-in Junction Box IP65: Weatherproof protection included
- Universal Dimmer Compatibility: CLF/LED/MLV/ELV (leading or trailing edge)
- Smooth Flicker-Free Dimming: Professional dimming performance
- Overload and Short Circuit Protection: Built-in safety features
- 90% Efficiency @ Full Load: Energy-efficient operation
- 24VDC Single Output: Standard LED strip voltage
- 120VAC Input: Standard household voltage
- Ultra-Compact Dimensions: Easy to hide in tight spaces
- Suitable for Dry and Wet Locations: IP65 rated versatility
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | WDM-MX1-Dimmable Driver |
| Brand | WDM Lighting |
| Series | MX1 Series |
| Max Power | 300W |
| Input Voltage | 120VAC |
| Output Voltage | 24VDC |
| Dimmable | Triac / ELV (leading or trailing edge) |
| Dimmer Compatibility | CLF/LED/MLV/ELV dimmer switches (any brand) |
| Dimming Performance | Smooth, flicker-free |
| IP Rating | IP65 (Weatherproof – suitable for dry and wet locations) |
| Efficiency @ Full Load | 90% |
| Warranty | 5 Year |
| Dimensions (W × H × L) | 3.85″ × 1.64″ × 6.57″ |
| Junction Box | Built-in (integrated) |
| Protection Features | Overload and short circuit protection |
| Output Type | Single output |
| Indoor/Outdoor Usage | Both (IP65 rated) |
| Market Position | Smallest 300W dimmable LED driver available |
Product Parameters
| Parameter | Specification |
|---|---|
| Driver Type | Dimmable constant voltage LED driver |
| Control Method | External dimmer switch (leading or trailing edge) |
| Junction Box | Integrated IP65 rated weatherproof enclosure |
| Installation Type | Remote mounting with built-in J-Box |
| Wiring Configuration | Single output, line voltage input |
| Heat Management | 90% efficiency reduces heat generation |
| Safety Features | Overload protection, short circuit protection |
| Environmental Rating | IP65 – protected against dust and water jets |
| Form Factor | Ultra-compact design for concealed installation |
Installation & Setup
The WDM-MX1 installs as a remote LED driver with integrated junction box:
Installation Steps:
- Power Off: Turn off power at circuit breaker
- Dimmer Installation: Install compatible CLF/LED/MLV/ELV dimmer switch at wall location
- Driver Mounting: Mount MX1 driver in installation location (ceiling, cabinet, etc.)
- Line Voltage Connection: Connect 120VAC input through dimmer switch using built-in J-Box
- LED Strip Connection: Connect 24VDC output to LED strips
- Secure Installation: Ensure driver is properly secured and protected
- Verify IP65 Seal: For outdoor installations, ensure all connections are weatherproof
- Test Operation: Turn on power and test dimming functionality
Installation Locations:
- Ceiling Cavities: Perfect for concealed cove lighting installations
- Under Cabinets: Fits in tight cabinet spaces
- Outdoor Soffits: IP65 rating allows exterior installation
- Wall Cavities: Behind drywall for architectural lighting
- Cabinet Interiors: Inside furniture and millwork
- Above Drop Ceilings: Commercial ceiling installations
Professional Installation Recommended: This product should be installed by a qualified electrician familiar with line voltage (120VAC) electrical work and LED systems.
Applications
The compact size and weatherproof design make the MX1 Series ideal for diverse installations:
Residential Applications
- Cove Lighting: Ceiling coves where space is extremely limited
- Under-Cabinet Lighting: Kitchen and workspace task lighting
- Architectural Accents: Wall grazing, toe-kick lighting, stairway illumination
- Outdoor Soffits: Covered porch and eave lighting (IP65 rated)
- Closets and Cabinets: Interior cabinet and closet lighting
- Bathroom Vanity: Under-vanity or mirror backlighting
- Home Theater: Indirect lighting with smooth dimming control
Commercial Applications
- Retail Displays: Product highlighting with precise dimming
- Restaurants: Dining area mood lighting
- Hotels: Corridor lighting, room accents
- Office Spaces: Architectural accents, indirect lighting
- Healthcare: Patient room ambient lighting
- Hospitality: Bar and lounge atmospheric lighting
- Museums: Display case and exhibit lighting
Outdoor Applications
- Covered Porches: Outdoor living space illumination
- Eave Lighting: Architectural building accents
- Outdoor Kitchens: Task lighting in covered areas
- Pergolas: Structure accent lighting
- Covered Walkways: Path and safety lighting
LED Strip Compatibility
24VDC LED Strips
The WDM-MX1 is compatible with all 24VDC LED strip lighting:
- COB LED Tape: All Chip-on-Board LED configurations
- SMD LED Strips: 5050, 2835, 3528, and other SMD types
- High-Density Strips: Up to 300W total power
- Single Color: White, warm white, cool white, colored
- RGB Strips: When used with compatible RGB controller
- Tunable White: CCT adjustable LED tape (with controller)
- LED Modules: 24V rigid LED bars and modules
Maximum Load Capacity
- 300W Maximum: Total connected LED load
- Example: Up to 90 feet of 10W/ft COB LED tape
- Multiple Strips: Connect parallel runs up to 300W total
Important: This driver outputs 24VDC only. Ensure your LED strips are rated for 24V operation. Not compatible with 12V LED strips without additional conversion.
Dimmer Switch Compatibility
Universal Compatibility
Works with any leading or trailing edge dimmer designed for LED loads:
- Lutron: Diva, Caseta, RA2, Maestro LED+ dimmers
- Leviton: Decora LED+ dimmers
- Legrand: adorne and radiant LED dimmers
- Generic: Any CLF/LED/MLV/ELV rated dimmer
Dimmer Types Supported
- Leading Edge (Triac): Standard LED/incandescent dimmers
- Trailing Edge (ELV): Electronic low voltage dimmers
- MLV Dimmers: Magnetic low voltage compatible
- Smart Dimmers: Lutron Caseta, Z-Wave, Zigbee LED dimmers
What’s in the Box
- 1× WDM-MX1-Dimmable Driver (MX1 Series)
- Installation Hardware
- Quick Start Installation Guide
- Spec Sheet: Download PDF
Note: Dimmer switch, LED strips, and installation wire sold separately.
The Smallest 300W Dimmable LED Driver
Ultra-compact design with built-in IP65 junction box. Professional 300W power in the smallest package available.
Perfect for space-constrained installations, outdoor applications, and any project where concealment is critical.
Why Choose WDM Lighting?
At WDM Lighting, we engineer LED driver solutions that solve real-world installation challenges. The MX1 Series represents our commitment to innovation, combining professional-grade power delivery with the smallest form factor available in a 300W dimmable driver.
Our integrated junction box design with IP65 weatherproof protection eliminates the need for separate electrical boxes while providing installation flexibility for both indoor and outdoor applications. With 90% efficiency, universal dimmer compatibility, comprehensive protection features, and a 5-year warranty, the WDM-MX1 delivers the reliable performance that professional installers demand.
Whether you’re working on residential remodels with challenging space constraints, commercial installations requiring concealed drivers, or outdoor architectural lighting projects, the MX1 Series provides the compact, powerful, and versatile solution you need.
5-Year Warranty • IP65 Weatherproof • Ultra-Compact Design • Universal Dimmer Compatible
