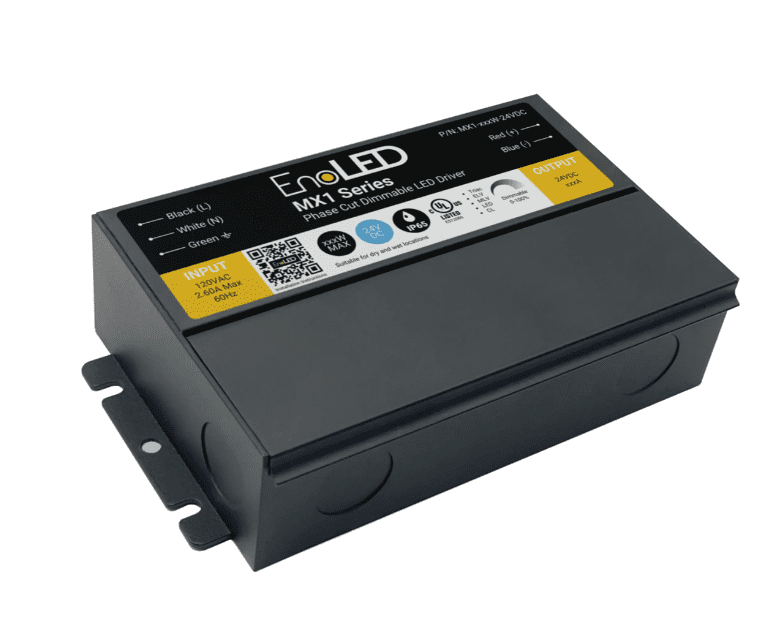

WDM-MX1-Dimmable Driver
The Smallest 300W Dimmable LED Driver with Built-in IP65 Junction Box and 90% Efficiency
View Product Details
WDM-MX1-Dimmable Driver
Ultra-compact 300W LED driver with built-in IP65 weatherproof junction box, universal dimmer compatibility, and 90% efficiency for professional installations
Key Features at a Glance:
- Smallest 300W Driver: Ultra-compact 3.85" × 1.64" × 6.57" design
- Built-in J-Box: IP65 weatherproof junction box included
- Universal Dimmer: CLF/LED/MLV/ELV compatible (leading or trailing edge)
- 90% Efficiency: High-performance energy-efficient operation
- 24VDC Output: 120VAC input with 300W maximum power
- 5-Year Warranty: Professional-grade reliability
📞 Call: 972-650-1855
Why the Smallest 300W Driver Matters
🚫 The Problem
Traditional 300W LED drivers are bulky and difficult to conceal in tight spaces. Separate junction boxes add complexity, require additional mounting space, and complicate installations. Remodeling projects often lack room to hide large drivers, forcing compromises in design or installation quality.
✅ The Solution
The WDM-MX1 is the smallest 300W dimmable LED driver available, with an integrated IP65 junction box that eliminates separate electrical boxes. At just 3.85" × 1.64" × 6.57", it fits in ceiling cavities, cabinet spaces, and tight installations where traditional drivers simply won't work. Perfect for remodeling projects where space is at a premium.
What Makes the MX1 Different?
Most 300W LED drivers sacrifice space efficiency or require separate junction boxes. The MX1 Series delivers professional power in an ultra-compact package with integrated weatherproof protection.
Smallest 300W Driver
Industry-leading compact design at just 3.85" × 1.64" × 6.57". Fits in ceiling cavities, under cabinets, and tight spaces where traditional 300W drivers simply won't work. Perfect for concealed installations.

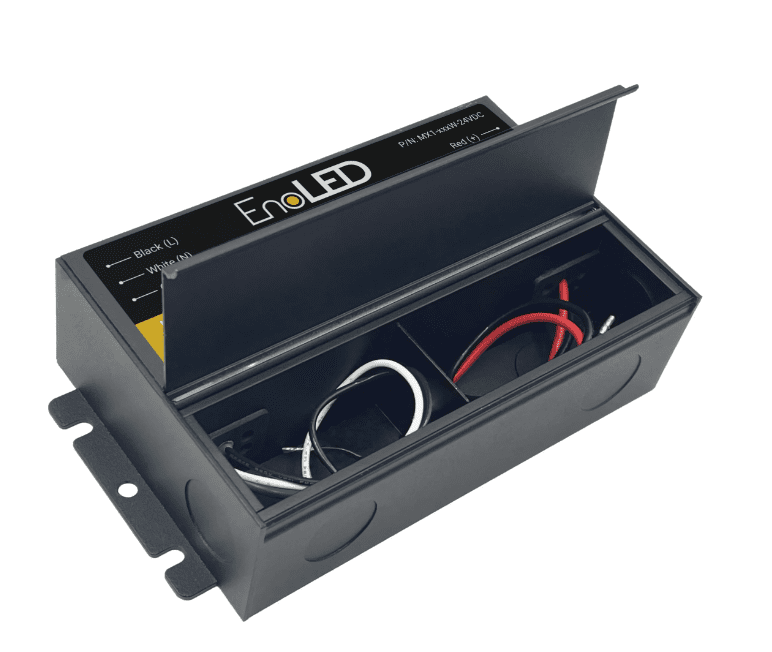

Built-in Junction Box
Integrated IP65 weatherproof junction box eliminates separate electrical boxes. Simplifies installation, saves space, and provides indoor/outdoor versatility with dust and water jet protection.
Universal Dimmer Compatible
Works with any CLF/LED/MLV/ELV dimmer switch including Lutron, Leviton, and all major brands. Supports both leading and trailing edge dimming for smooth, flicker-free lighting control.
90% Efficiency
High-efficiency operation at 90% reduces heat generation and energy waste. Overload and short circuit protection ensure reliable operation for professional-grade installations requiring 300W power capacity.
IP65 Weatherproof
Complete dust protection and water jet resistance allows installation in both indoor and outdoor locations including bathrooms, kitchens, outdoor soffits, and covered exterior spaces.
24VDC LED Compatible
Works with all 24VDC LED strips including COB LED tape, SMD strips, RGB, RGBW, and addressable LEDs. 300W capacity handles demanding installations with up to 90 feet of high-density LED tape.
The Space-Saving Advantage
When traditional 300W drivers won't fit, the MX1 delivers. Perfect for remodeling projects, tight ceiling cavities, and installations where concealment is critical.
Installation Locations
The ultra-compact design fits where traditional drivers cannot:
- Ceiling Cavities: Perfect for concealed cove lighting where space is extremely limited
- Under Cabinets: Fits in tight cabinet spaces for kitchen and workspace task lighting
- Outdoor Soffits: IP65 rating allows exterior installation in covered areas
- Wall Cavities: Behind drywall for architectural lighting without bulky enclosures
- Cabinet Interiors: Inside furniture and millwork for hidden installation
- Above Drop Ceilings: Commercial ceiling installations with limited clearance
Universal Dimmer Compatibility
Works seamlessly with any leading or trailing edge dimmer switch for smooth, flicker-free lighting control throughout your installation.
| Dimmer Type | Compatible Brands | Control Method |
|---|---|---|
| CLF/LED Dimmers | Lutron Diva, Caseta, Maestro LED+ | Leading edge (Triac) |
| ELV Dimmers | Lutron, Leviton, Legrand trailing edge | Electronic low voltage |
| MLV Dimmers | Magnetic low voltage compatible | Leading edge |
| Smart Dimmers | Lutron Caseta, Z-Wave, Zigbee LED dimmers | Wireless + dimming |
| Generic LED Dimmers | Any brand rated for LED loads | Leading or trailing edge |
Complete LED Strip Compatibility
Compatible with all 24VDC LED strips up to 300W maximum load. Perfect for COB LED tape, SMD strips, RGB, RGBW, and addressable LEDs.
| LED Strip Type | Maximum Capacity | Applications |
|---|---|---|
| COB LED Tape (24V) | Up to 90 feet at 10W/ft | Premium continuous lighting, under-cabinet, coves |
| SMD LED Strips | 300W total (5050, 2835, 3528) | Accent lighting, task lighting, architectural |
| RGB LED Strips (24V) | 300W combined channels | Color-changing installations (with RGB controller) |
| RGBW LED Strips (24V) | 300W combined channels | Color + white (with RGBW controller) |
| Addressable LEDs (24V) | 300W pixel capacity | Dynamic effects (with addressable controller) |
| LED Modules/Bars (24V) | 300W total power | Sign lighting, display cases, rigid installations |
Technical Specifications
Power Specifications
- Max Power: 300W
- Input Voltage: 120VAC
- Output Voltage: 24VDC
- Efficiency: 90% @ full load
Dimming Control
- Dimmer Type: Triac / ELV
- Leading Edge: ✓ Supported
- Trailing Edge: ✓ Supported
- Dimming: Smooth, flicker-free
Protection & Rating
- IP Rating: IP65 (weatherproof)
- Junction Box: Built-in
- Overload: Protected
- Short Circuit: Protected
Physical Dimensions
- Size: 3.85" × 1.64" × 6.57"
- Weight: Lightweight design
- Mounting: Multiple options
- Warranty: 5 Years
Download Complete Specifications:
MX1 Series Spec Sheet (PDF)Real-World Applications
From residential remodels to commercial installations and outdoor architectural lighting, the MX1's compact design solves space challenges across every project type.
🏠 Residential
- Kitchen under-cabinet lighting
- Living room cove lighting
- Bedroom accent lighting
- Bathroom vanity backlighting
- Home theater indirect lighting
- Closet and cabinet lighting
🏢 Commercial
- Restaurant mood lighting
- Retail display illumination
- Hotel corridor lighting
- Office architectural accents
- Showroom product lighting
- Reception and lobby areas
🌳 Outdoor
- Covered porch lighting
- Eave and soffit illumination
- Outdoor kitchen task lighting
- Pergola structure accents
- Covered walkway lighting
- Building facade accents
🔧 Remodeling
- Space-constrained installations
- Historic building preservation
- Quick renovation projects
- Tight ceiling cavity retrofits
- Cabinet lighting upgrades
- Hidden driver requirements
Frequently Asked Questions
Ready to Solve Your Space Challenge?
Experience the smallest 300W dimmable LED driver with built-in IP65 junction box, universal dimmer compatibility, and 90% efficiency. Perfect for installations where traditional drivers won't fit.
Order Now - $170📞 Call: 972-650-1855
Why Choose WDM Lighting?
WDM Lighting engineers LED driver solutions that solve real-world installation challenges. The MX1 Series represents our commitment to innovation, combining professional-grade 300W power delivery with the smallest form factor available in the industry. With 90% efficiency, universal dimmer compatibility, IP65 weatherproof protection, and a 5-year warranty, the WDM-MX1 delivers the reliable performance that professional installers demand. Whether you're working on residential remodels with challenging space constraints, commercial installations requiring concealed drivers, or outdoor architectural lighting projects, our team provides the technical support and product expertise to ensure your success.
5-Year Warranty • IP65 Weatherproof • Ultra-Compact Design • Universal Dimmer Compatible
