WDM - Touch Panel LED Controller
Professional 86mm Wall-Mounted Controller with 2.4GHz Wireless, 30-Meter Range, and Support for 600 Addressable Pixels
View Product Details
WDM - Touch Panel LED Controller
Professional wall-mounted touch panel with 2.4GHz wireless control, standard 86mm design, and comprehensive LED strip compatibility for elegant lighting control
Key Features at a Glance:
- 30-Meter Range: 2.4GHz RF wireless technology
- Standard 86mm Design: Fits any wall box worldwide
- Universal Compatibility: SPI addressable & PWM LED strips
- 600 Pixel Support: Professional addressable capacity (RGB/CCT)
- 12A Output: 6A per channel, 12A total maximum
- DC 5V-24V: Flexible voltage operation
📞 Call: 972-650-1855
Why Professional Wall Control Matters
🚫 The Problem
Handheld remotes get lost, batteries die at inconvenient times, and smartphones aren't always accessible. Professional installations need reliable, always-available control that looks sophisticated and integrates seamlessly with interior design. Clients expect wall-mounted control for commercial and high-end residential projects.
✅ The Solution
The WDM - Touch Panel provides professional wall-mounted control with standard 86mm design that fits anywhere. 2.4GHz wireless technology delivers 30-meter range, while support for up to 600 addressable pixels handles installations of any size. Perfect for residential, commercial, hospitality, and architectural lighting projects.
What Makes This Touch Panel Different?
Most LED wall panels offer basic on/off control with limited compatibility. This professional touch panel delivers comprehensive 2.4GHz wireless control, universal LED strip support, and elegant design that enhances any space.
Standard 86mm Design
Universal wall box compatibility means easy installation worldwide. Premium build quality with just 12mm depth fits any decor. Professional appearance that complements residential, commercial, and hospitality interiors.
2.4GHz RF Technology
Professional 30-meter range that penetrates walls and obstacles. No line-of-sight required. Reliable control throughout large spaces without Wi-Fi dependencies or Bluetooth limitations. Works with WDM Lighting 12-in-1 Bluetooth Controller and CE/UL certified.
Universal Compatibility
Works with both SPI addressable strips (WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812) and PWM strips (RGB, RGBW, RGBCCT). Supports up to 600 addressable pixels for professional-scale installations.
Professional Power
DC 5V-24V flexible voltage operation. Up to 12A total output with 6A maximum per single channel. Handles demanding installations with professional-grade performance and reliability. Low quiescent current of just 26µA.
Wide Operating Range
Reliable operation from -20℃ to 60℃ (-4℉ to 140℉). Perfect for various installation environments including climate-controlled spaces and temperature-variable locations. Built to last in demanding conditions.
Long Battery Life
CR2032 battery provides extended operation with minimal maintenance. Low-power 2.4GHz RF technology ensures months of reliable use. Battery included for immediate installation and use.
Complete Control Capabilities
The WDM - Touch Panel offers comprehensive control options that scale from simple residential installations to complex commercial lighting systems.
Multi-Location Control
Install multiple touch panels throughout your space for convenient control from any room:
- Residential: Panels in living room, bedroom, hallway for whole-home control
- Commercial: Multiple control points for restaurants, offices, retail spaces
- Hospitality: Guest room control, corridor panels, reception area management
- Architectural: Multi-floor control, zone management, centralized operation
System Integration
Seamless compatibility with WDM Lighting's complete LED control ecosystem:
- Works with WDM Lighting 12-in-1 Bluetooth Controller
- Compatible with 2.4G Remote Controls for backup control
- Integrates with BanlanX app for comprehensive management
- Supports multi-zone control and synchronized effects
Professional Installation
Standard 86mm design ensures easy installation in any wall box:
- Fits worldwide standard wall boxes without modification
- Clean, professional appearance in any setting
- Simple mounting with included hardware
- Low 3mA-13mA working current for reliable operation
Complete LED Strip Compatibility
Works seamlessly with both addressable SPI LED strips and traditional PWM strips, supporting all major IC chip models and LED configurations.
| LED Strip Type | Supported Models | Maximum Capacity |
|---|---|---|
| SPI RGB/CCT Addressable | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815 | 600 pixels |
| SPI RGBW Addressable | SK6812, SK6812RGBW, compatible RGBW chips | 450 pixels |
| SPI RGBCCT Addressable | 5-channel addressable strips | 300 pixels |
| PWM RGB Strips | FCOB, SMD5050, 3528, 5630, 5730 (V+ R G B) | 6A per channel, 12A total |
| PWM RGBW Strips | FCOB, SMD5050 4-pin (V+ R G B W) | 6A per channel, 12A total |
| PWM RGBCCT Strips | FCOB, SMD5050 5-pin (V+ R G B CW WW) | 6A per channel, 12A total |
Technical Specifications
Physical Dimensions
- Size: 86mm × 86mm × 12mm
- Standard: Universal wall box fit
- Material: High-quality ABS plastic
- Installation: Indoor use
Wireless Performance
- Technology: 2.4GHz RF
- Range: Up to 30 meters (98 feet)
- Battery: CR2032 (included)
- Current: 26µA quiescent
Power Specifications
- Voltage: DC 5V-24V
- Working Current: 3mA-13mA
- PWM Single Channel: 6A max
- PWM Total Output: 12A max
LED Strip Capacity
- RGB/CCT SPI: 600 pixels
- RGBW SPI: 450 pixels
- RGBCCT SPI: 300 pixels
- Certification: CE, UL
Environmental
- Operating Temp: -20℃ to 60℃
- Temperature Range: -4℉ to 140℉
- Waterproof: IP30 (indoor use)
- Certification: CE, UL
Control Features
- Type: SPI + 5CH PWM
- Panel Control: Touch interface
- Compatibility: WDM controllers
- Support: 2.4G remote & app
Real-World Applications
From elegant home automation to sophisticated commercial installations and luxury hospitality venues, the WDM - Touch Panel delivers professional control for any lighting project.
Residential
- Living room accent lighting
- Bedroom ambient control
- Home theater lighting
- Kitchen under-cabinet LEDs
- Hallway and stairway zones
- Multi-room coordination

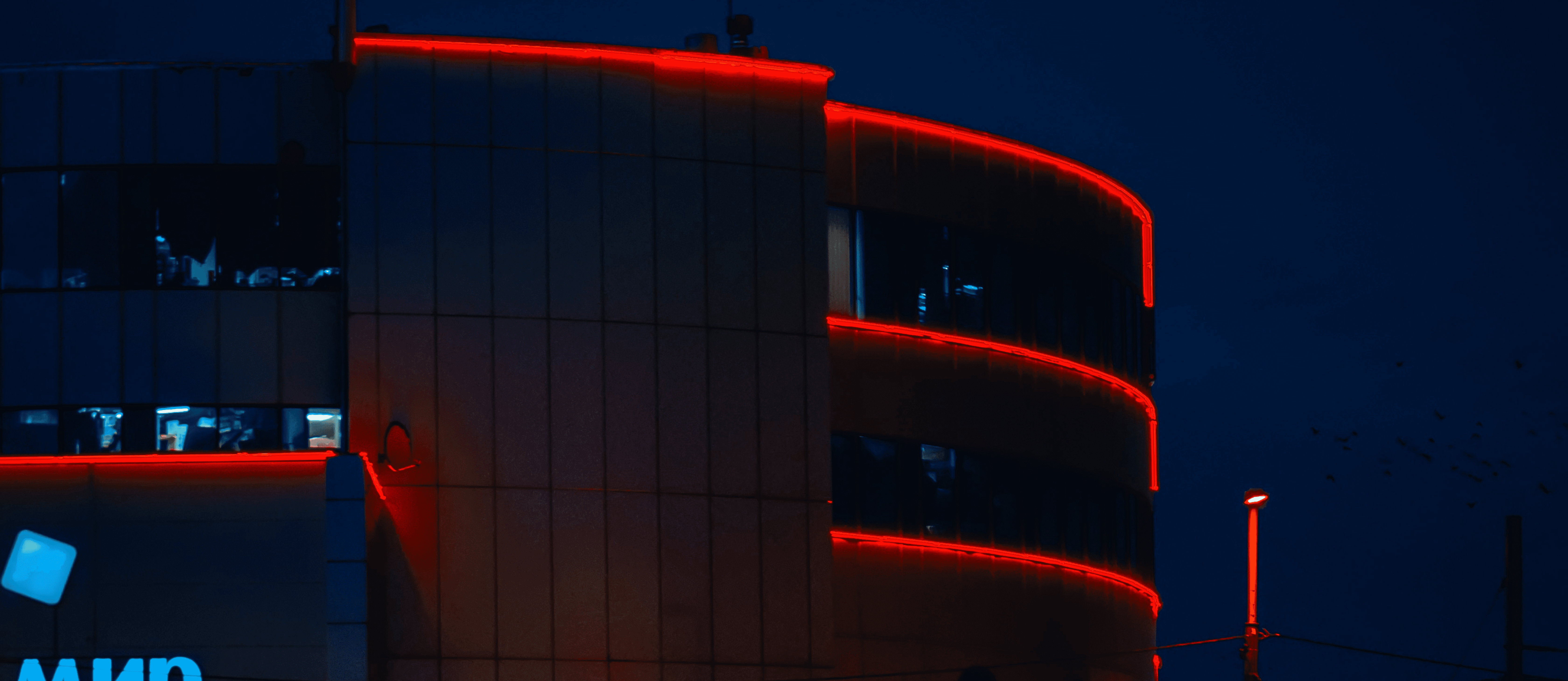

Commercial
- Restaurant mood lighting
- Retail display illumination
- Office workspace control
- Showroom accent lighting
- Reception area ambiance
- Conference room management

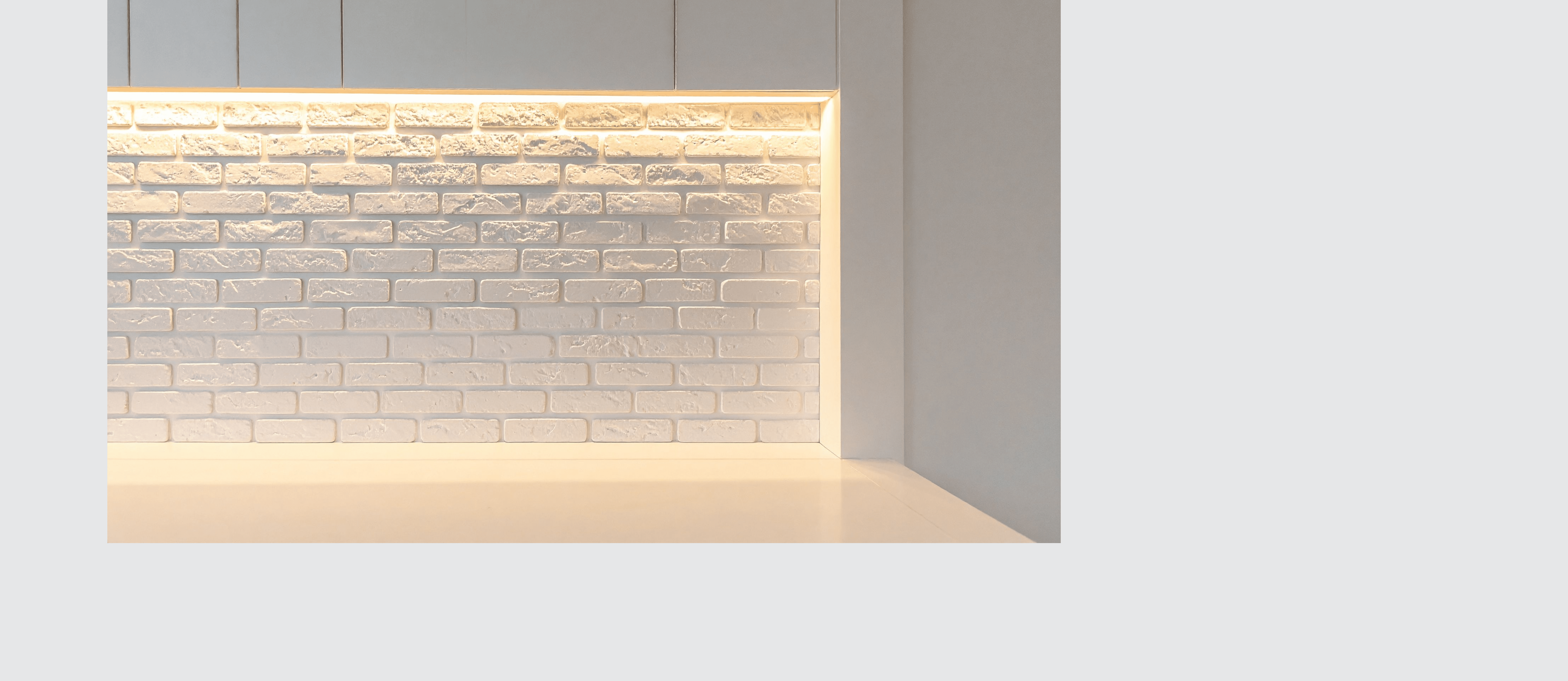

Hospitality
- Hotel guest room control
- Spa and wellness lighting
- Lobby and corridor zones
- Ballroom event lighting
- Restaurant dining ambiance
- Bar and lounge effects

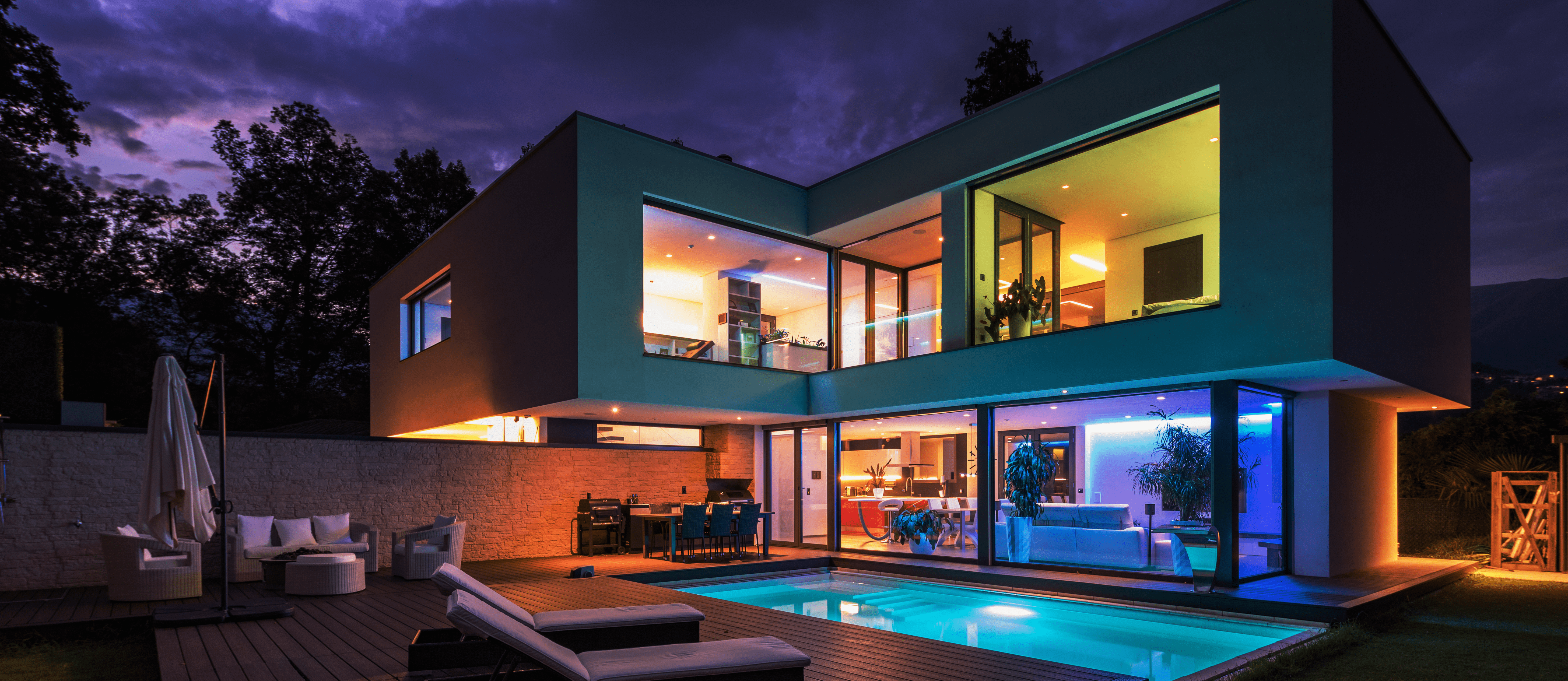

Architectural
- Building facade lighting
- Atrium feature control
- Gallery and museum display
- Multi-floor coordination
- Landscape integration
- Public space management
Frequently Asked Questions
Ready to Upgrade Your LED Control?
Experience professional-grade wall-mounted LED control with 30-meter wireless range, 600-pixel capacity, and universal LED strip compatibility. Perfect for residential, commercial, and hospitality installations.
Order Now - $30📞 Call: 972-650-1855
Why Choose WDM Lighting?
WDM Lighting specializes in professional-grade LED control solutions backed by expert support. Our products are engineered for reliability and designed to work seamlessly together, creating a comprehensive lighting control ecosystem. Whether you're a professional installer managing complex commercial projects, a builder creating smart homes, or a homeowner seeking elegant lighting control, our team provides the technical support and product expertise to ensure success.
