24V Sidewinder LED Flex Neon White Spool

24V Sidewinder LED Flex Neon White Spool


SKU: CL-C-FR-F22-24V- Category:

Product Description

LED Flex Sidewinder

  • LED Type SMD 3014 tri-chip
  • Material PVC-Ivory White
  • Working Voltage DC24V
  • Rated Power / 10.5 Watts per meter
  • LED Qty/108 LEDs per meter
  • LED Distance 0.36″
  • Min. Cutting Unit 9 LEDs for Red/Amber / 6 LEDs for Green/Blue/White
  • Cutting Length 8.33cm for Red/Amber / 5.56cm for Green/Blue/White

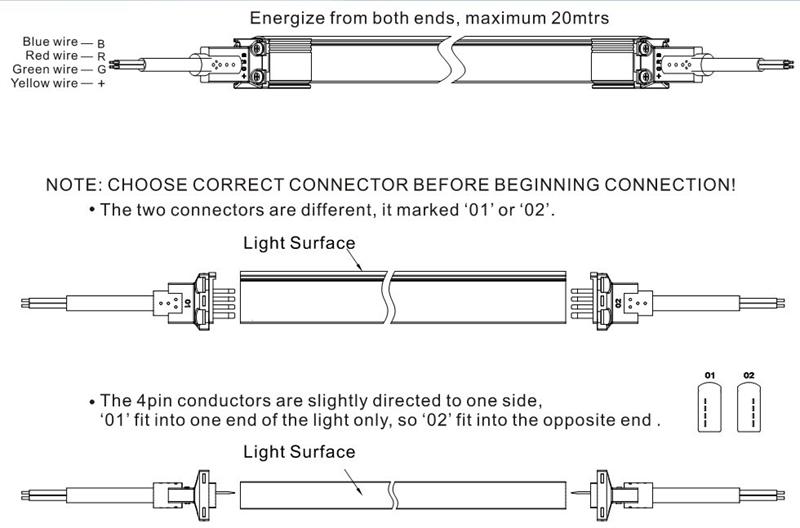

  • Connection Length Red/Amber: 15M for Single Feed / 30M for Double End Feed  / Green/Blue/White: 10M for Single Feed / 20M for Double End Feed
  • IP Rating IP68
  • UL Listed

Download User Manual

Download U.S. UL Certification

Download Canada UL Certification.
Download cutting increment sheet for this product.


Additional Information

Weight 10 lbs
Color Temperature
