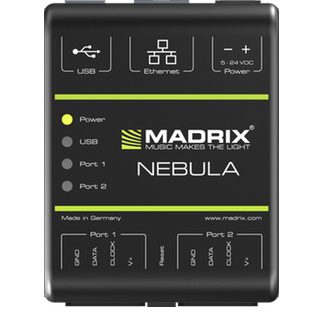

MADRIX NEBULA

MADRIX NEBULA

$661.50

Availability: 100 in stock

SKU: IA-HARD-001018 Category:

Product Description

MADRIX NEBULA is a flexible interface to directly control a wide range of digital LEDs.  The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over USB or Art-Net over Ethernet network and is built to provide excellent image quality.

Direct Connection
Directly connect to a wide range of supported LEDs via two 4-pin screw terminals. A signal frequency of up to 24 MHz is available. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.

SPI Converter
Art-Net is directly converted to SPI without the need for an additional interface. Reliably distribute data from any compatible software or hardware controller. Use USB or Art-Net for all the great features of the MADRIX software.

Supported LEDs
APA101 APA102 APA104 APA106 LPD6803 LPD8806 P9883 SK6812 SK6822 SM16703 SM16716 TLS3001 TLS3008 TM1804 TM1809 TM1812 TM1829 UCS1903 WS2801 WS2803 WS2811 WS2812 WS2812B

Quality Output Of 8 Universes
Each device drives up to 1,360 RGB pixels while ensuring responsive delivery of high-quality signals to each individual LED. You can choose the output protocol separately for each of the two ports.

MADRIX Sync Mode
Simply use several units at the same time for larger projects. Only MADRIX software and hardware allow you to fully synchronize Art-Net data for all ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.

Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 6 indicators quickly show the device status with the option to turn them off.

Invaluable Features
The device is ready within seconds after startup. Its firmware is upgradable for future features. HTP Merging is automatically available for two Art-Net sources. Use the built-in web tool for configuration.

Download specification sheet.   Download quick start user guide.
Weight 2.3125 lbs
